ELTIM Pre 330+, preamplifier module with MM/MC input

5 Line inputs, 1 MM/MC input, 1 Line out and 1 Line out/Record out.

ELTIM Pre 330+, preamplifier module with MM/MC input
€ 299,00 *Prices include VAT € 247,11 excluding VAT €
Manufacturer:  ELTIM
Article code:  PRE330+
0 star(s) in 0 review(s) Write a review
PRE-330+ preamplifier module highlights:

-  5 Line inputs (1 and 3-6), relay switched
-  1 MM/MC phono input (2)
-  Location for ALPS carbon potentiometer
-  2 external outputs (muted by relay)
-  Out 2 selectable as volume controlled Out or Tape out.
-  On board Power Supply toroidal 5,0VA + Netfilter

OPTIONS:
-  ELTIM electronic (VCA) volume control module
-  ELTIM symmetrical Voltage regulator module
-  ELTIM buffered line inputs
-  ELTIM buffered balanced inputs
-  ELTIM buffered line outputs
-  ELTIM buffered balanced outputs
-  ELTIM Front Panel PCB support
-  uP controlled functioning (volume and selections)

In stock: 1

Pre-330+

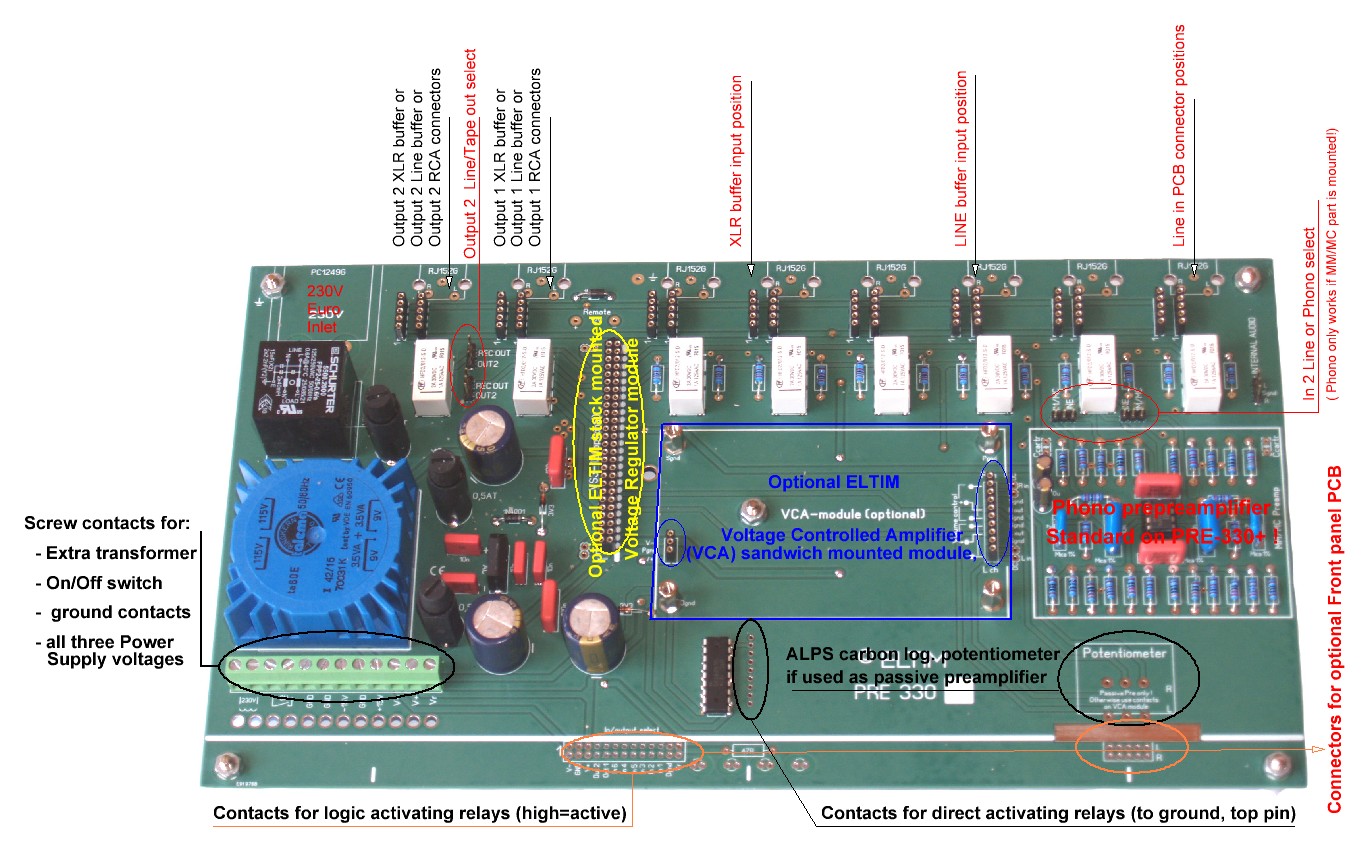

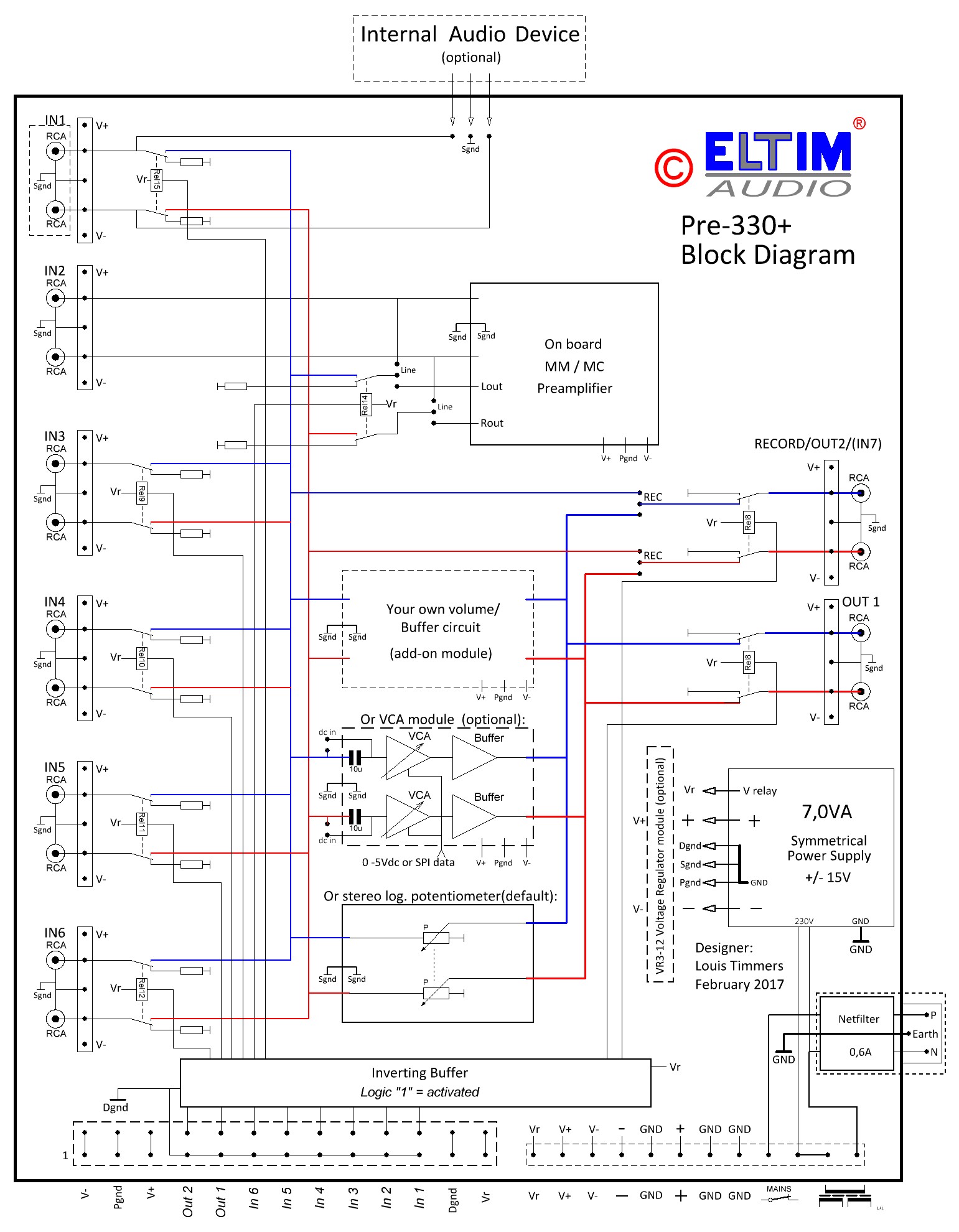

With this Pre-330 module we offer a 6 Inputs / 2 Outputs switching module with an on board Power Supply.
Standard it is a so called passive Preamplifier with electronic in/output switching function and a potentiometer volume control.
If you like, you can simply make it an active preamplifier by adding one of our VCA modules without modifications.
Instead of that you could build your own electronics, with f.e. volume/balance/tone/etc. controls.
If you want to go one step higher, add our VR3-12 Voltage Regulator module for improved sound quality.

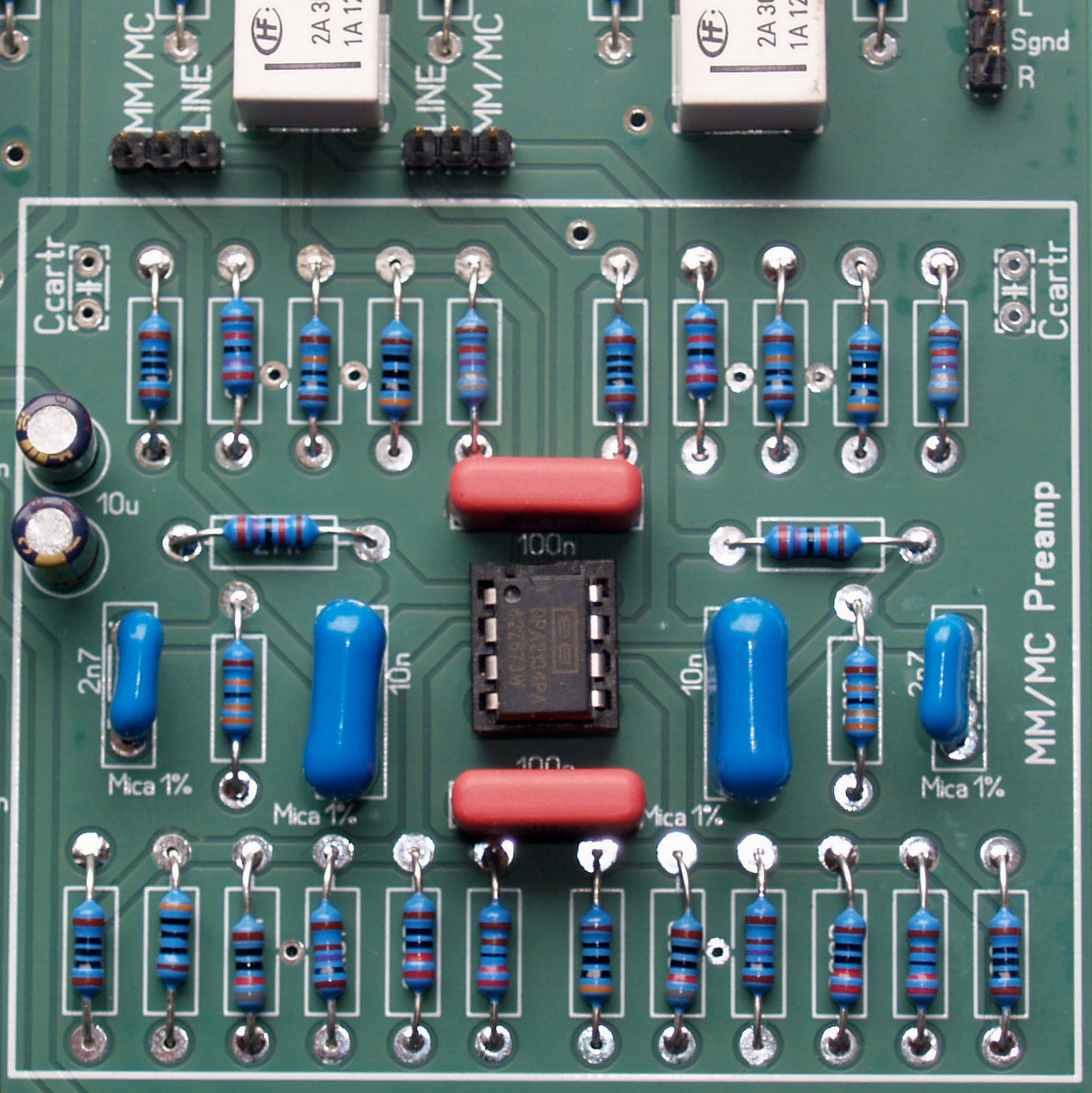

In this + version we added a nice MM/MC phono stage, connected to input 2.
It can be equipped with 16 gain and 16 input impedance selector switches at the bottom.
You could see it as a very good MM/MC preamp with two extra line inputs actually.

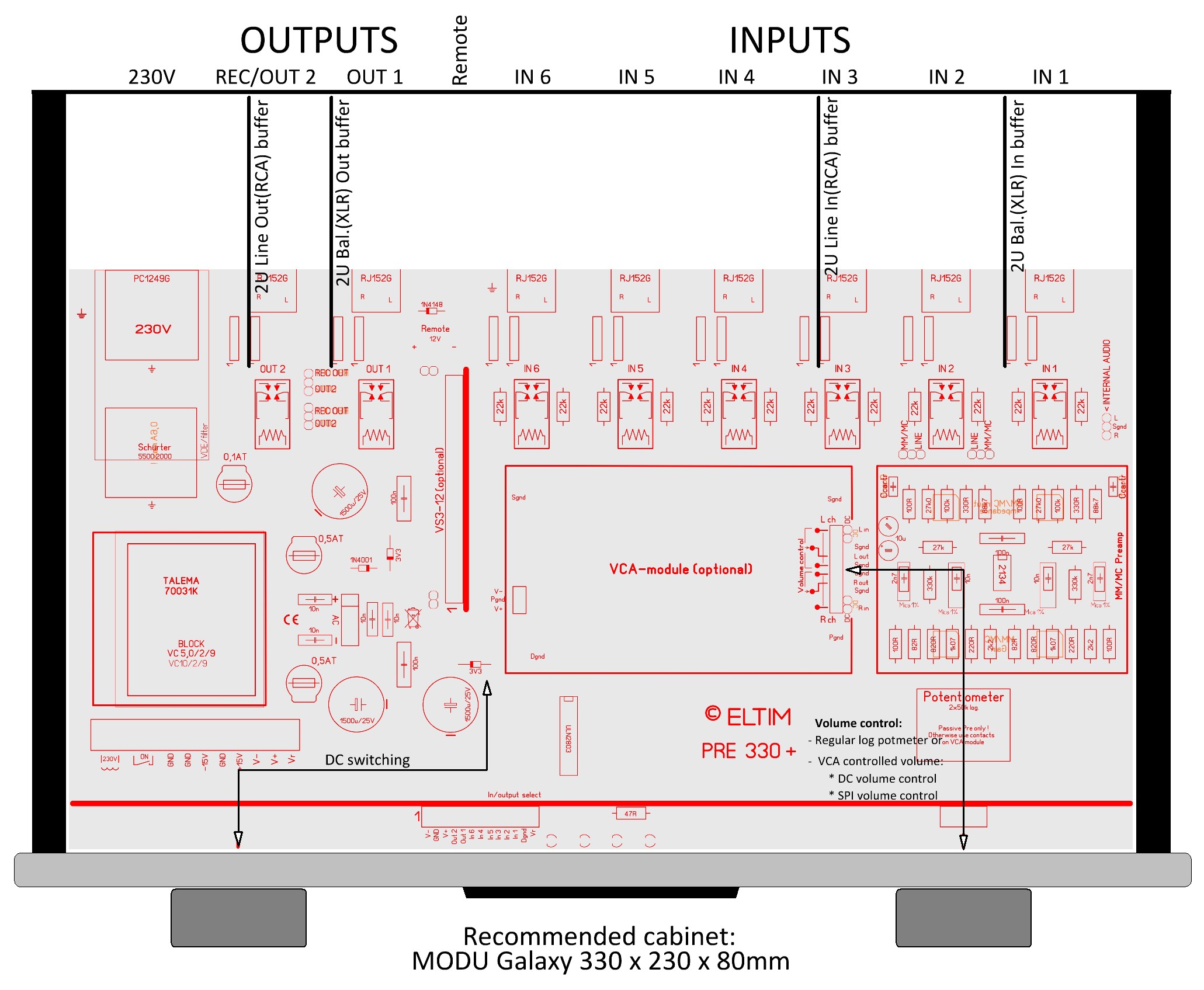

This Pre-330 module exactly fit in the nice and cost effective MODU Galaxy 330x170mm cabinets.
Of course, you also can mount them in any larger cabinet as well, f.e. in MODU Slimline






Our prototype in a MODU Slimline 3U/230mm with (too) small in/out modules.
We made new ones for 2U/230mm and 3U/280mm cabinets.
Check the YouTube tour through this preamplifier.
We demonstrated it at X-Fi premium Audio Show in 2019.
