ELTIM VR5-xx, symmetrical Voltage Regulator module

+/- Voltage regulator board for universal use.

€ 49,95 *Prices include VAT € 41,28 excluding VAT €

Manufacturer: ELTIM
Article code: VR5-xx

0 star(s) in 0 review(s) Write a review

We need to order it!

Voltage range (±10%):

Trimmed (±0,3%):

Quantity

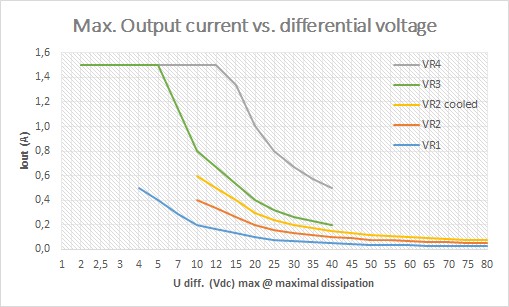

Just by changing two resistors, we can alter the output voltage withing 40V max. of input voltage level. Unlisted output voltages on request.

LM 317/337 output voltage resistor table

according to the formula in het datasheets:
Uin min	Uin max	Uout	R1	R2
6,25	41,25	1,25	240	0
6,5	41,5	1,5	240	47
7,05	42,05	2,05	240	150
8,3	43,3	3,3	240	390
9,9	44,9	4,9	240	680
10,6	45,6	5,6	240	820
11,6	46,6	6,6	240	1k0
12,65	47,65	7,65	240	1k2
14,25	49,25	9,25	240	1k5
15,85	50,85	10,85	240	1k8
18	53	13	240	2k2
20,65	55,65	15,65	240	2k7
23,85	58,85	18,85	240	3k3
27,05	62,05	22,05	240	3k9
31,3	66,3	26,3	240	4k7
36,1	71,1	31,1	240	5k6
42,5	77,5	37,5	240	6k8
50	85	45	240	8k2
60	95	55	240	10k
70	105	65	240	12k
86	121	81	240	15k
102	137	97	240	18k
124	159	119	240	22k
150	185	145	240	27k
182	217	177	240	33k
215	250	210	240	39k
255	290	250	240	47k
X + 5	X + 40	X	240	etc.

ALWAYS CHECK VOLTAGE BEFORE CONNECTING ELECTRONICS
