ELTIM VS-40, Input/Voltage stage module, Ø40mm holes

Feeds ELTIM CS Current Stage boards, Line input ac/dc, T1-T4 rare full symmetrical transistor array

ELTIM VS-40, Input/Voltage stage module, Ø40mm holes
99,95 VAT% is Country dependent! After entering correct country you can login, register, search, etc. € 82,60 excluding VAT
Manufacturer ELTIM
Article codeVS40
0 star(s) in 0 review(s) Write a review
Some of the highlights of this VS-40 Voltage Stage module:
  • Separate (upgradeable) most basic fully symmetrical pre-driving (voltage) stage
  • Symmetrical, 500uV matched trimmed SMD transistor array (instead of T1-T4) input stage.
  • Transistor array substrate grounded to input ground, avoiding any noise and EMI.
  • Extremely stable, wide range Current regulator diodes (CRD’s).
  • DC input on left and right side. High end capacitor between this input and RCA-inlet possible.
  • AC (>3Hz, other on request) input on left or right side.        Mica cap as input filter.
  • A variety of 2,2uF input capacitors fit, even MUNDORF EVO types.
  • Low loss, 1% Mica capacitors in local feedback circuit
  • Vr+ and Vr- available on left- and right side.
  • Styroflex RF-capacitor in feedback circuit.
  • Separated power ground and input ground tracks avoiding hum and noise.
  • Copper thickness 2x 35um (normally it is 1x 12/18um).
  • Mechanically supports Ø40mm electrolytic capacitors on PS-2 or PS-3.
  • Dimensions: 200x80x8mm.


We need to order it!

Ready built and tested VS-40 Voltage Stage module, built according to the bespoke requirements of the customer. You can select some input capacitors above.
For a functioning amplifier you also need at least one of our CS-modules. These are the output part of the amplifier, this VS-module is the input part.


With the same VS-40 PCB you can make a left hand and a right hand side.

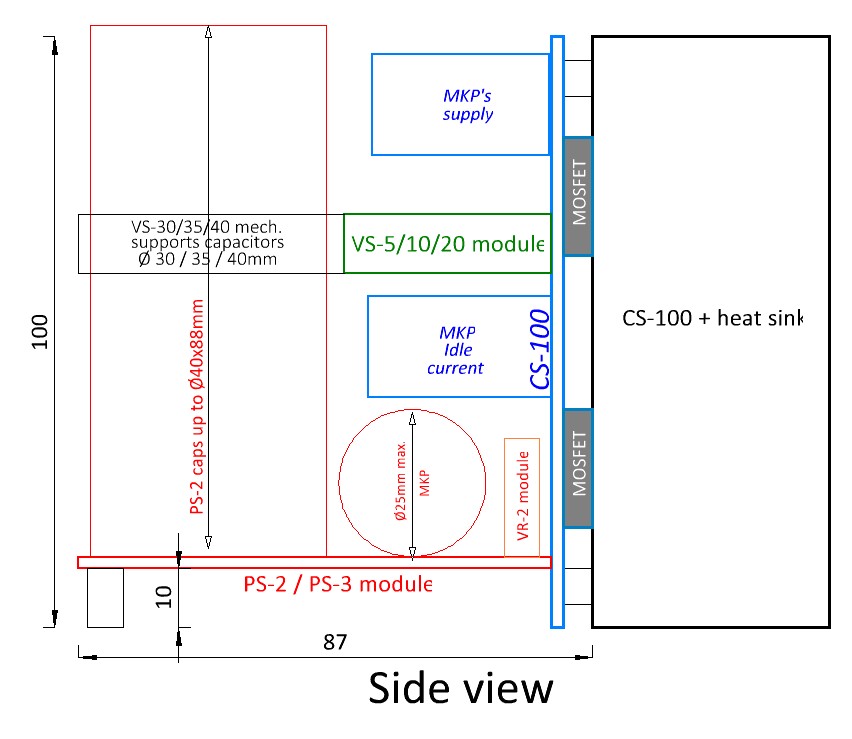

There are 4 holes Ø40mm, surrounding PS-2 or PS-3 electrolytic capacitors,
improving their mechanical stability that way:
