Besides the basic PCB mounted RJ152G connectors, also the buffer modules
as shown below fit on our Pre 230/330 modules.
Advantages are not only the better connectors, but most circuits
are privided with quality buffering components as well.
We even have balanced versions, providing balanced in- and outputs.
|
|
|

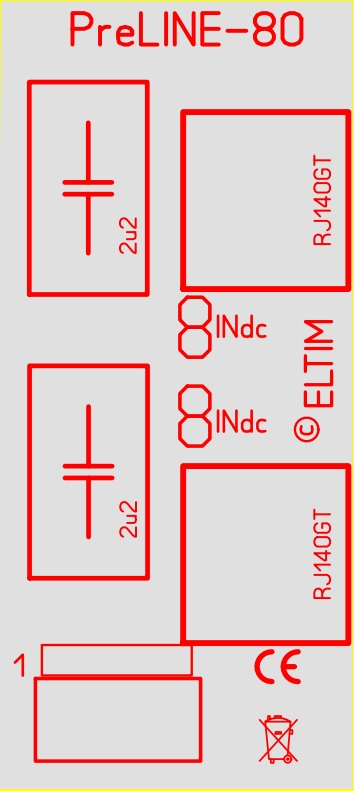

PreLine module with 2,2uF MKP capacitors,
for 2U (80mm) cabinets
- 2,2uF/450V Panasonic MKP input capacitors
- Input capacitors can be bypassed by a jumper.
- Suitable for both in- and outputs
- Gold plated RJ140GT RCA connectors
- Fits on Pre 230/330 i.c.w. 80mm high cabinets
|
|
|
Input buffer circuits for 3U (120mm high) cabinets
|
|
|

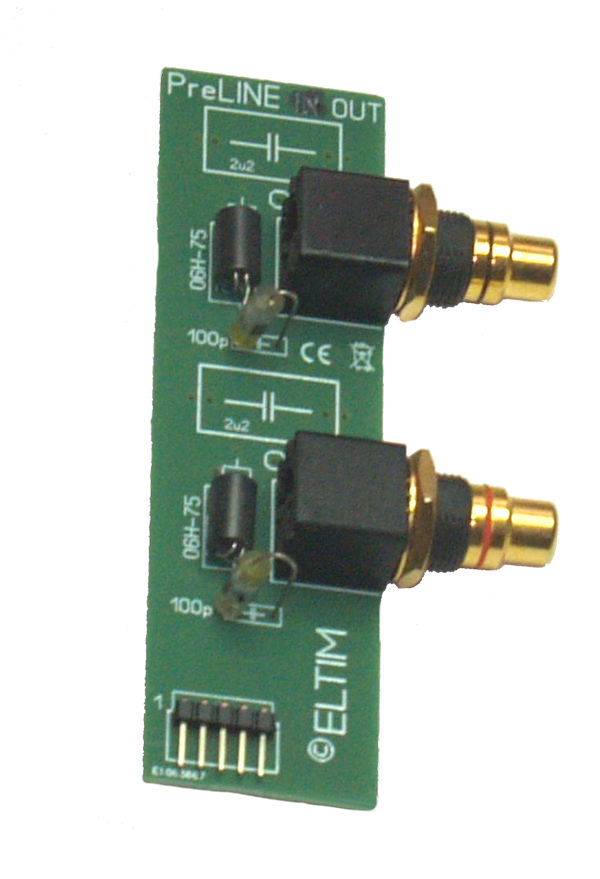

PreLINE IN, Line in module
- Gold plated RJ140GT RCA connectors
- 2,2uF/450V Panasonic MKP input capacitors
- Input capacitors can be bypassed by a jumper.
- RC low-pass EMI input filters
- Fits on Pre 230/330 i.c.w. 120mm high cabinets
|
|
|
Pre-IN-2134, buffered line in module
- Input signals buffered by OPA 2134
- Gold plated RJ140GT RCA connectors
- 2,2uF/450V Panasonic MKP input capacitors
- Input capacitors can be bypassed by a jumper.
- RC low-pass EMI input filters
- Fits on Pre 230/330 i.c.w. 120mm high cabinets
|
|
|

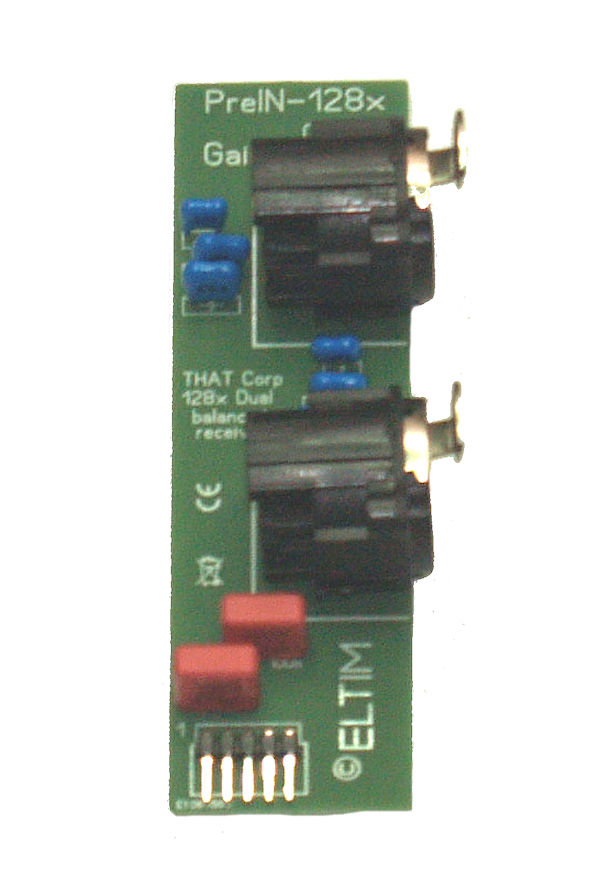

PreIN-128x, buffered balanced in module
- MC916G gold plated XLR female connectors
- XLR input signals buffered by THAT 128x
- Gain selectable 0/-3/-6dB by choise of IC only.
- Special EMI input filter circuitry
- Fits on Pre 230/330 i.c.w. 120mm high cabinets
|
Output buffer circuits for 3U (120mm high) cabinets
|
|
|
PreLINE OUT module
- Gold plated RJ140GT RCA connectors
- LC low-pass EMI filters
- Fits on Pre 230/330 i.c.w. 120mm high cabinets
|
|
|

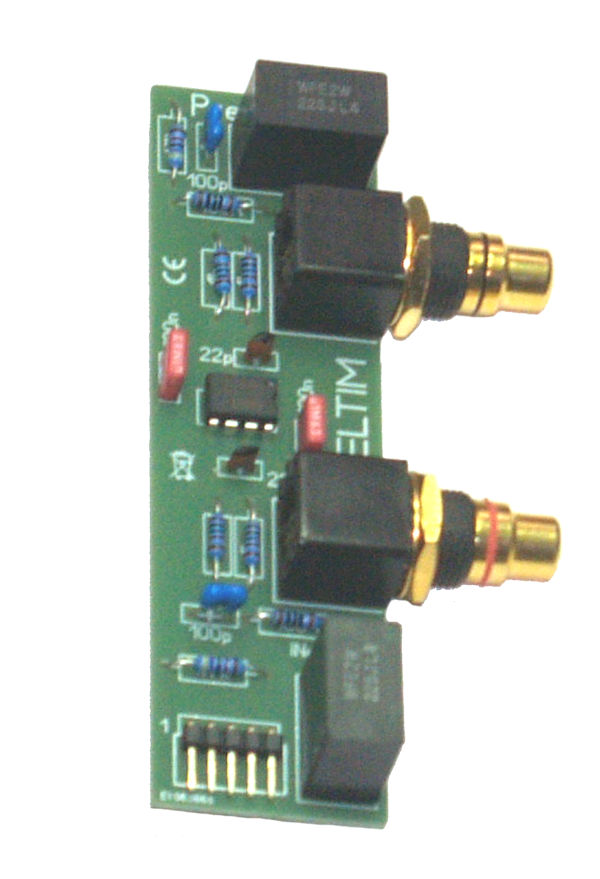

Pre-OUT-2134, buffered line in module
- Output signals buffered by OPA 2134
- Gold plated RJ140GT RCA connectors
- Standard gain 0dB, other on request
- LC EMI output filters
- Fits on Pre 230/330 i.c.w. 120mm high cabinets
|
|
|
|
|
|
|

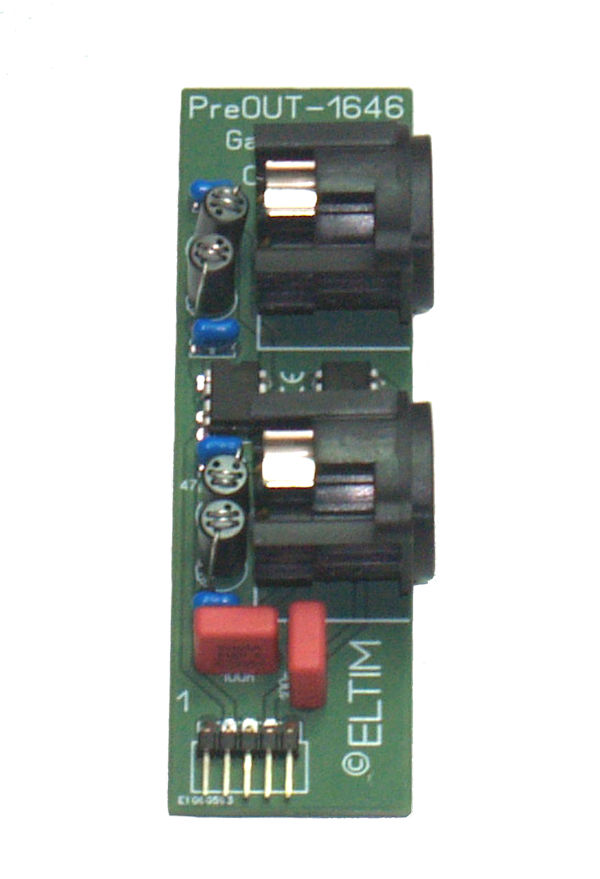

PreOUT-1646, buffered balanced in module
- MC915G gold plated XLR male connectors
- XLR output signals buffered by dual THAT 1646
- Gain 6dB
- 4x LC EMI output filter circuits
- Fits on Pre 230/330 i.c.w. 120mm high cabinets
|
