ELTIM CD Mosfet add-on modules

With the CD- add-on modules listed below, you can increase the output of most of our CS-Current Stage modules. Some are special versions for making Monoblocks.
The thin lines in the graphs in the CS-datasheets refer to these CD-modules.

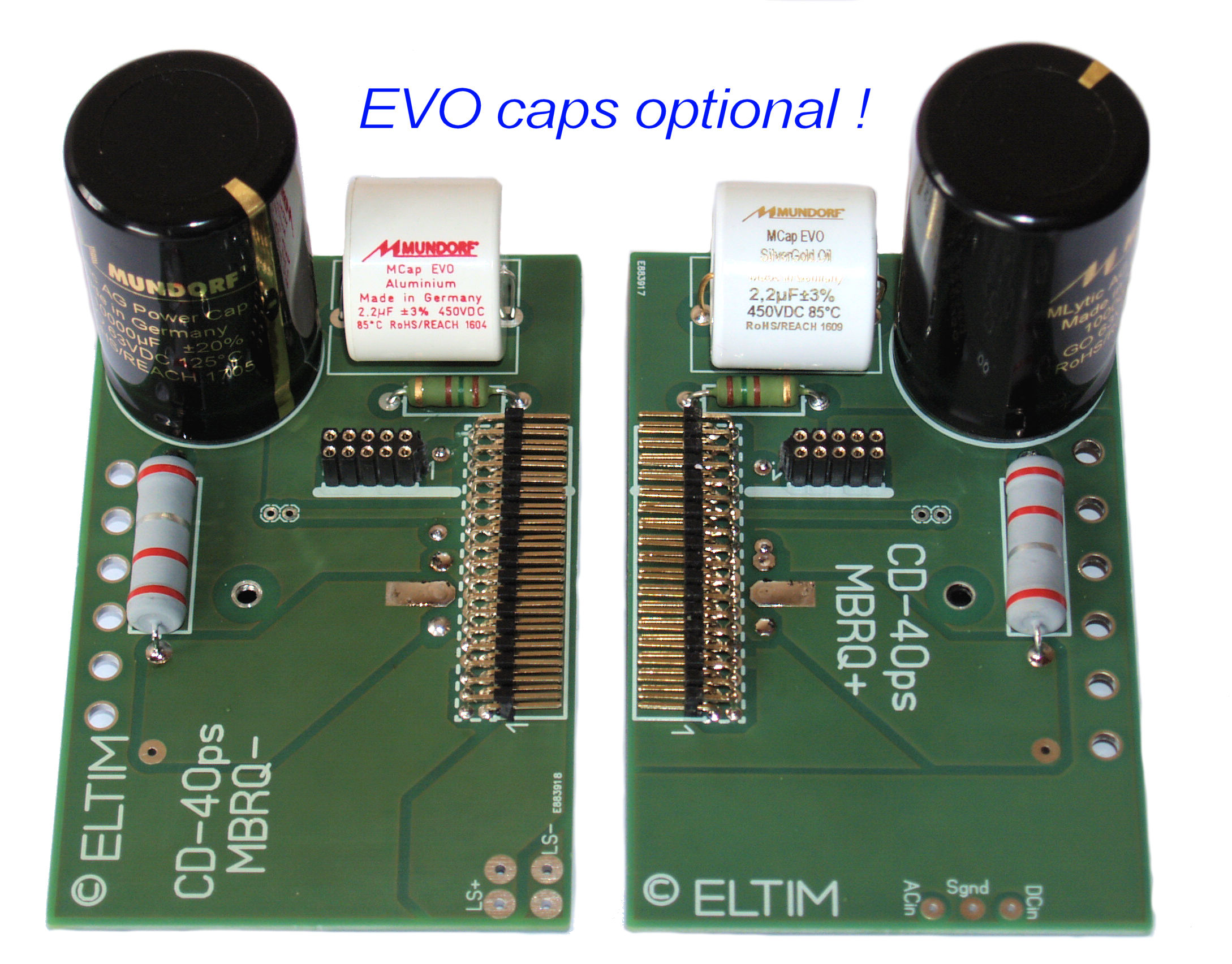

Mosfet add-on pair for a compact 120Wrms Monoblock

   These modules come (and priced) as a pair.
   Together with a CS-40ps CB they form a nice monoblock
   construction.

  • 1x EXICON 8A/200V mosfet on each board (back side).
  • Extra power supply caps by choice.
  • Extra supply MKP capacitors (picture) by choice
  • A monoblock built with these can deliver around 120Wrms
  • It exactly fits in a MODU Galaxy casing 230x280x80mm.
  • It also fits in a MODU Mini Dissipante 330x300x80mm

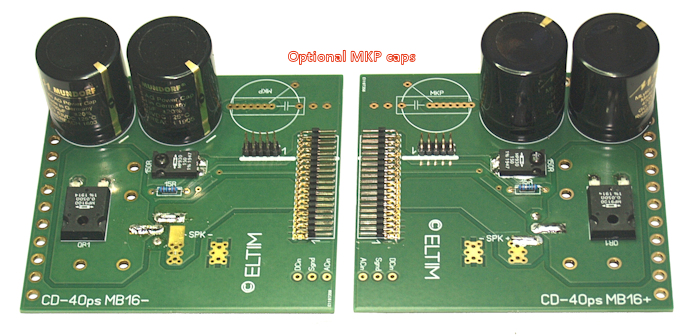

Mosfet add-on pair for a compact 200Wrms Monoblock

   These modules come (and priced) as a pair.
   Together with a CS-40ps CB  they form a nice monoblock
   construction

  • 1x EXICON 16A/200V mosfet on each board (back side).
  • Extra power supply caps by choice
  • Extra locations for supply MKP capacitors by choice
  • Top quality, induction free CADDOCK resistors
  • A monoblock built with these can deliver around 200Wrms.
  • It exactly fits in a MODU Galaxy casing 230x280x120mm.
  • It also fits in a MODU Mini Dissipante 330x300x120mm

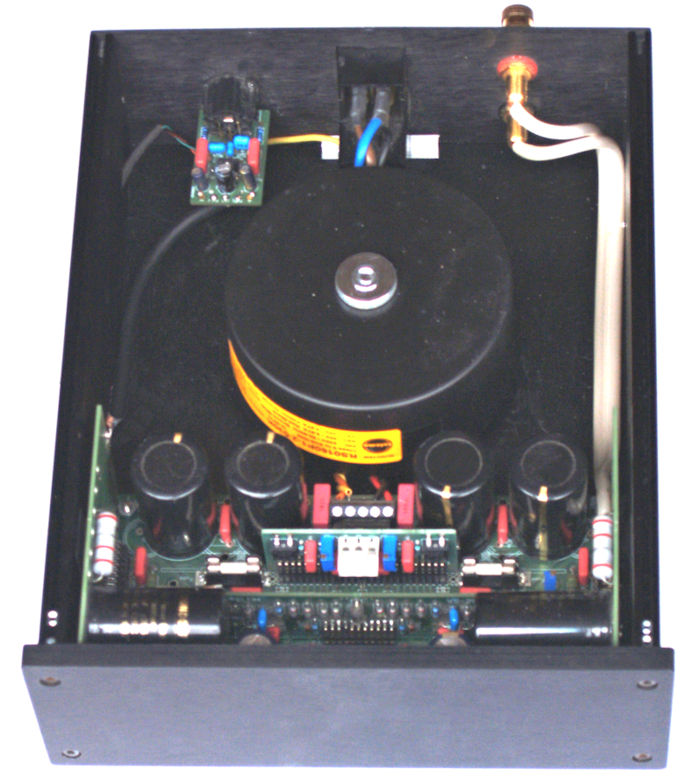

<  Example of a quality, yet modest monoblock 120Wrms.

Required modules:

  • VS-20 input stage module (vertical at front)
  • CS-40ps CB Power Supply/connecting module (main)
  • CD-40 MB  LEX08Mosfet modules (vertical, left and right)

Exactly fitting in a MODU Galaxu 230x280x80mm.

As extra mounted here:

  • VS-3/30 Voltage Regulator module (in the middle)
  • BinLout-1200 Balanced input module (at backpanel)

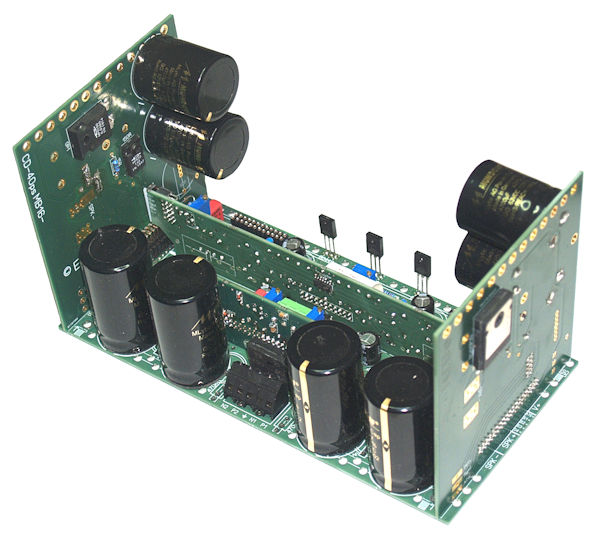

We demonstrated with a pair of these at




CS-40PS + VS-20 + CD40PS MB LEX16 + VR3/30.
Mount it in a MODU Galaxy 230x280x120mm cabinet.
Just connect a transformer and in/output connectors,
and enjoy your 200Wrms ELTIM monoblocks.
