ELTIM Preamplifier main boards
Our preamplifier modules are made in a way that you can start with the basic configuration as a so called "passive" preamplifier. Later (or immediatelly) you can expand it if you like with an active volume control module making it an active preamplifier, in/output buffer modules and a regulated power supply for even better sound. You can also connect a second (power amp) transformer to it and a headphone amplifier, like our PA-4989, which looks very simple but astonishes everybody with extreme good sound.

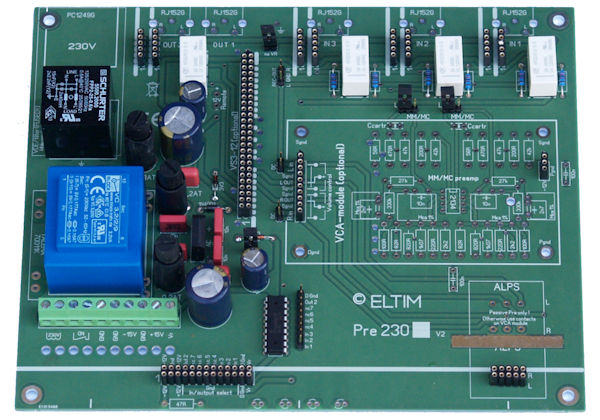

PRE-230 Preamplifier design with 3 inputs / 2 outputs, 210mm wide:
This High-End preamplifier is a small "all in one" module, meant for 230mm wide cabinets:
- Integrated symmetrical +/-10V power supply (regular of toroidal trafo by choice)
- Netfilter 0,6A on board
- Location for optional symmetrical voltage regulator board
- PCB mounted RCA (RJ152G) in/out connectors can be mounted directly on the board
- IN/OUT buffer modules, line or balanced can be mounted instead
- Electronic switching circuit by relays with silver plated contacts
- Three inputs
- Two outputs, 1=internally, 2 = externally
- Output 2 can be muted by a relay.
- The volume (Attenuation/gain) can be controlled by
- Optional MM/MC pre-preamplifier parts can be mounted (standard on + version)
- a stereo logarithmic volume potentiometer (passive preamp) or
- an optional Voltage Controlled Amplifier (VCA, active preamp) module.
- Standard it suits an MM cartridge 2mV/47k.
- Optional we can mount 4x HEX rotary switches at bottom side,
providing all sensitivities and impedances for MM and MC.
- One of our symmetrical voltage regulator modules can be mounted.
- Extra connections for on/off switch, (switched) power amp transformer and other electronics.
- Fits exactly in any MODU Galaxy 230x170mm (or deeper/larger) cabinet.
- I.c.w. a VCA module also a digital dB reading (200mV module) can be mounted.
One of our SB-frontpanel modules can be mounted where volume potmeter, selector rotary switch, light dim and mute OUT 2 switch are mounted. Then there is no wiring required.

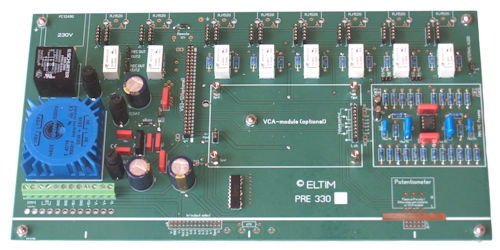

PRE-330 Preamplifier design with 6 inputs / 2 outputs and meant to be used in 330mm wide "midi" cabinets. This High-End preamplifier module is an "all in one" module:
This High-End preamplifier is a mid-sized "all in one" module, meant for 330 or 435mm wide cabinets:
- Integrated symmetrical +/-10V power supply (regular of toroidal trafo by choise)
- Netfilter 0,6A on board
- Location for optional symmetrical voltage regulator board
- PCB mounted in/out RCA (RJ152G) connectors can be mounted directly on the board
- IN/OUT buffer modules, line or balanced can be mounted instead
- Electronic switching circuit by relays with silver plated contacts
- Six inputs
- Two outputs, both externally accessable
- Both outputs can be muted independently by a relay.
- The volume (Attenuation/gain) can be controlled by
- Optional MM/MC pre-preamplifier parts can be mounted (standard on + version)
- a stereo logarithmic volume potentiometer (passive preamp) or
- an optional Voltage Controlled Amplifier (VCA, active preamp) module.
- Standard it suits an MM cartridge 2mV/47k. Other on special request.
- Optional we can mount 4x HEX rotary switches at bottom side,
providing all sensitivities and impedances for MM and MC.
- One of our symmetrical voltage regulator modules can be mounted.
- Extra connections for on/off switch, (switched) power amp transformer and other electronics.
- Fits exactly in any MODU Galaxy 330x170mm (or deeper/larger) cabinet.
- I.c.w. a VCA module also a digital dB reading (200mV module) can be mounted.
One of our SB-frontpanel modules can be mounted where volume potmeter, selector switch, lights dimming and mute switches are mounted. While using this board, there is no wiring required.
One of our customers nearby is working on a digital frontpanel setup with remote control, nice display, etc. More soon.....
