ELTIM Supply accessory modules

In several cases, stereo amplifiers with dual supplies are connected to a single transformer. Then both, with relatively thick wiring have to be brought together to the connections of this single transformer, making a wiring mess mostly. With one of our PS-SPLIT modules this can be solved very convenient and neat.

You can also use it to connect a single power supply to two amplifier modules.

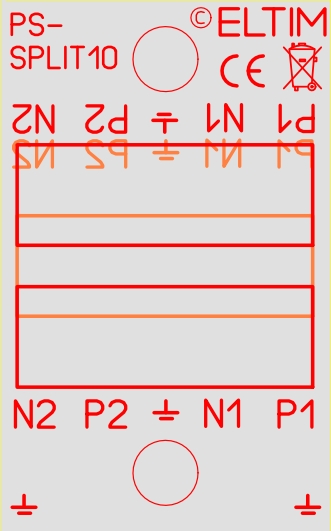

	ELTIM PS-SPLIT 10 One 5-pole screw connector at centre back Two 5-pole screw connectors at front Pitch 5mm Capable of connecting 2,5mm² wires 10A max. 28x45mm Mounting by 2x M3 (included).
	ELTIM PS-SPLIT 20 One 5-pole screw connector at centre back Two 5-pole screw connectors at front Pitch 7,5mm Capable of connecting 4,0mm² wires 20A max. 38x60mm Mounting by 2x M4 (included).
	ELTIM RC-1 Remote control function 6/12/24/48V Inrush current (<2,5A) limiter Limits startup current of toroidal trafos, etc. 10A max. 38x75mm Mounting by 2x M3/M4.
