ELTIM CS-modules

ELTIM High End / Reference Power Amplifier CS-modules
Unlike many amplifier modules on the market today, we did not try to make our modules as cheap
as possible, but as good as possible instead, one of the reasons why they are built differently.
At the same time we also didn't try to make them as small as possible, and made their
sizes exactly matching the cabinets we had in mind for them, resulting in very wide PCB tracks.
We only use highest quality, double sided FR4+ PCB's, made by Belgian Eurocircuits.
We also only use highest quality, new and original components.
Due to all this it becomes less hot, sounds better and nicer and
the life expectance is at least 15 years, good for you and our environment.

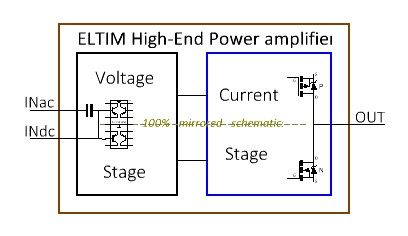

Our power amplifier designs are split up in two parts for more logical PCB layouts and way better, nicer sound.
An ELTIM input (VS) stage is processing small input signals and to be found on a similar page
and an output (Current) Stage processing large speaker currents, which are listed below.
Running from DC up to 650kHz/-3dB is possible due to the use of extremely high quality parts, a most simple
and symmetrical PCB layout and use of a symmetrical power supply, where no output capacitor is required.
With this very wide spectrum the input/output phase error is <0,2º within the audio band > pure 1:1 sound.
With us there is also no output coil required resulting in a slew rate > 65V/us.

By now there are numerous replies stating that our amps sound amazingly good and can beat €10k+ amps.

To make selecting more easy we now supply complete, working packs as well.

These amplifier packs are also available for OEM and DIY-dealers.  Contact

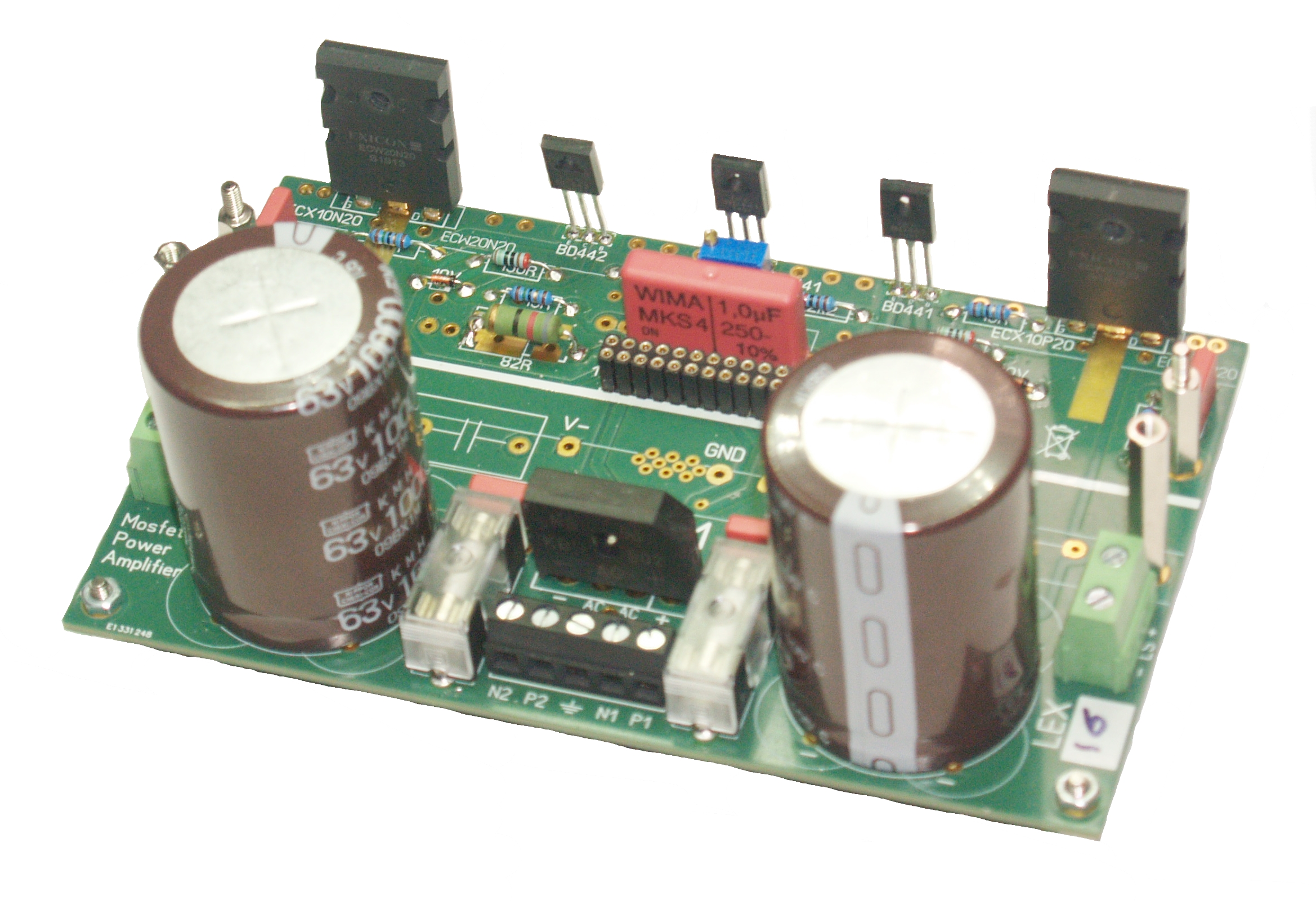

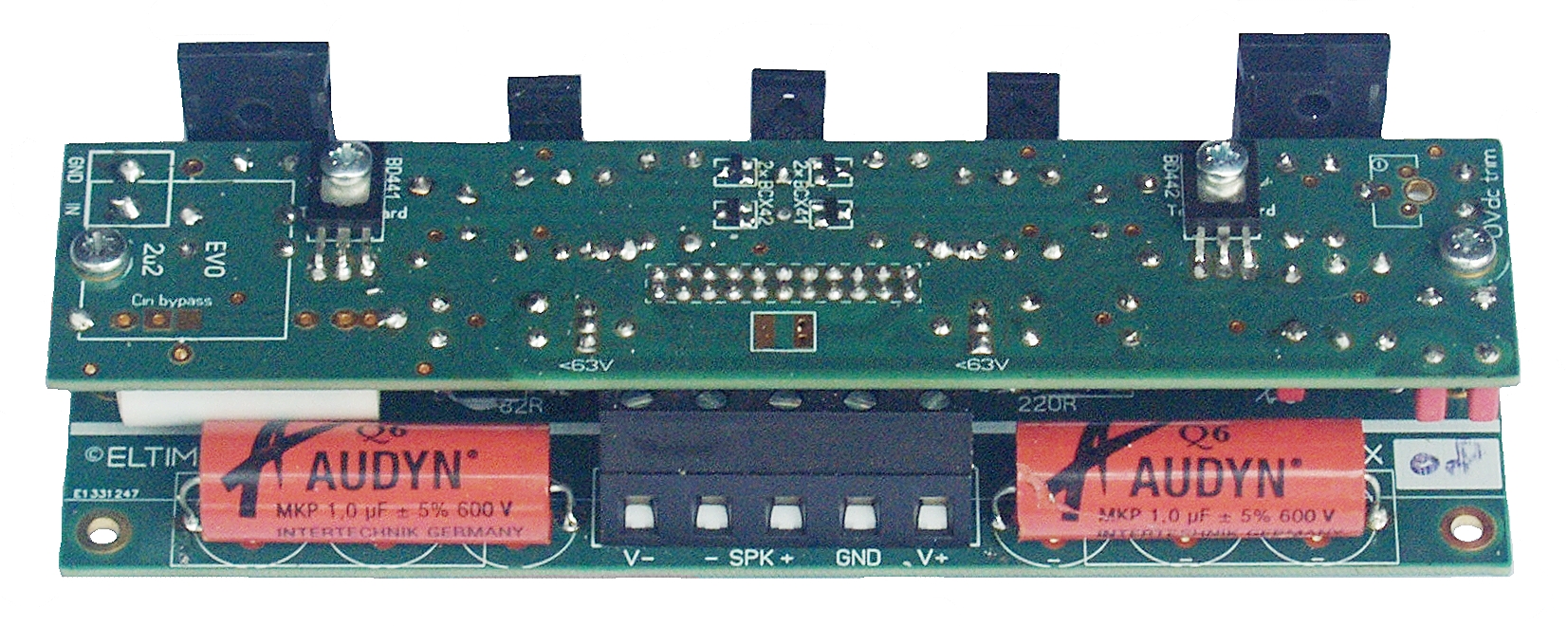

ELTIM L-mounted CS-output Stage modules.
More "regular" built CS-output stage modules where a separate power supply has to be connected.
Beside that you need to connect one of our VS- input stage modules as well.



Combi example: CS-35 + VS-5s: 149x50x35mm
capable to deliver up to 150Wrms @ 4/8ohms.

CS-35     L-mounted, 30-125Wrms

  • High value for money and compact design.
  • With cost effective Hexfets or ultralinear EXICON Mosfets.
  • All "down to earth" parts, still 1% MOX resistors.
  • Outrunning about all Class-D designs already!
  • Works perfect in modest (30-150Wrms) amplifier designs.
  • Mosfets L-mounted to any heat conducting surface.
  • Only connects with a VS-module (as always: required!).
  • Can be sandwiched with CS-35ps modules for active systems.
  • Matches width of VS-5 input module of only 149mm.
  • EU-made FR4+ PCB, 2x 35um copper.
  • Fits on top of CS-35ps, sharing the power supply
          ideal for active 2-way / stereo / bridged setups.
  • 149x50mm




ELTIM L-mounted CS-output Stage modules with integrated power supply.
With these modules you just need to connect an input module (VS) and a
dual secondary windings transformer to complete the amplifier with integrated power supply.





 CS-35ps     L-mounted, 30-125Wrms, incl power supply

  • High value for money and compact design.
  • Current stage module with integrated Power Supply.
  • Just a dual sec. windings transformer required as extra.
  • Outrunning about all Class-D designs already!
  • Matching VS-5 input stage fits perfect on top.
  • Works perfect in modest (30-150W) amplifier designs.
  • Mosfets L-mounted to any heat conducting surface.
  • Can be sandwiched with CS-35 modules for active systems.
  • Matches width of VS-5 input stage.
  • On top fits a CS-35, sharing the power supply
          ideal for active 2-way / stereo / bridged setups.
  • EU-made FR4+ PCB, 2x 35um copper.
  • 149x90mm  (height depends on elco's used).





 CS-40ps     L-mounted, 30-180Wrms, incl power supply

  • Our most sold, easy to build CS-module.     Sound video.
  • Current stage module with integrated Power Supply.
  • Just a dual sec. windings transformer required as extra.
  • Runs with one pair of 8A EXICON Mosfets.
  • Max. speaker current 8A.
  • Works perfect in modest (50-125W) amplifier designs.
  • Compact format,  recommended in integrated designs and smaller monoblock setups. Then also CD-40ps MB modules required!
  • Mosfets L-mounted to any heat conducting surface.
  • Allows the use of a protection or voltage regulator module.
  • EU-made FR4+ PCB, 2x 35um copper.
  • For monoblocks MODU Galaxy 230x280/350x80/120mm exactly fits.
  • 204x80mm  (height depends on elco's used).

Monoblock example:
VS-20 input stage
CS-40ps driving/power supply
CD-40ps Mosfet stage

Exactly fits in
MODU Galaxy
230x280/350x80/120mm








NEW 2025
 CS-120ps     L-mounted, 30-200Wrms, incl. power supply

  • Current stage module with integrated Power Supply.
  • Upgraded model of our succesful CS-40ps.
  • Just a dual sec. windings transformer required.
  • Runs with a single pair of 8A/16A EXICON Mosfets
  • Max. speaker current 8/16A
  • Works perfect in 50-150W amplifier designs.
  • Exactly fits in MODU Slimline/Galaxy 230mm deep.
  • Also fits in MODU Dissipante cabinets 300mm deep.
  • Mosfets L-mounted to any heat conducting surface.
  • Test connector for aligning 0Vdc output and idle current.
  • Allows the use of a protection or voltage regulator module.
  • EU-made FR4+ PCB, 2x 35um copper
  • 228x104mm  (height depends on elco's used).









NEW 2025

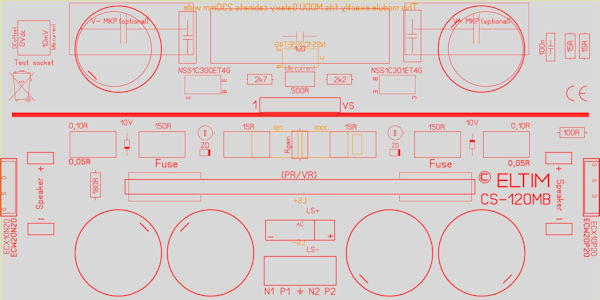

 CS-120MB     L-mounted, 30-200Wrms, incl. power supply

  • Monoblock Current stage module with integrated Power Supply.
  • Upgraded model of our succesful CS-40ps MB.
  • Just a dual sec. windings transformer required.
  • Runs with a single pair of 8A/16A EXICON Mosfets
  • Max. speaker current 8/16A
  • Works perfect in 50-200W Monoblock amplifier designs.
  • Exactly fits in MODU Galaxy 230mm wide cabinets.
  • Mosfets L-mounted to Galaxy aluminium profiled flanks.
  • Test connector for aligning 0Vdc output and idle current.
  • Allows the use of a protection or voltage regulator module.
  • EU-made FR4+ PCB, 2x 35um copper
  • 208x104mm  (height depends on elco's used).








NEW 2025

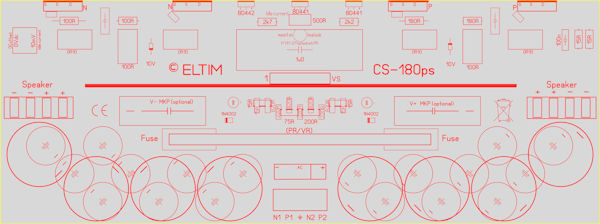

CS-180ps     L-mounted, 30-300Wrms, incl. power supply
(formerly listed as CS-60ps)

  • Current stage module with integrated Power Supply.
  • Larger / more power compared to our succesful CS-40ps.
  • Just a dual sec. windings transformer required.
  • Runs with two pairs of 8A or 16A EXICON Mosfets
  • Max. speaker current 16A/32A
  • Works perfect in 100-250W amplifier designs.
  • Exactly fits in MODU Slimline/Galaxy 280mm deep.
  • Also fits in MODU Dissipante cabinets 300mm deep.
  • Mosfets L-mounted to any heat conducting surface.
  • Test connector for aligning 0Vdc output and idle current.
  • Allows the use of a protection or voltage regulator module.
  • EU-made FR4+ PCB, 2x 35um copper
  • 278x104mm  (height depends on elco's used).





NEW 2025

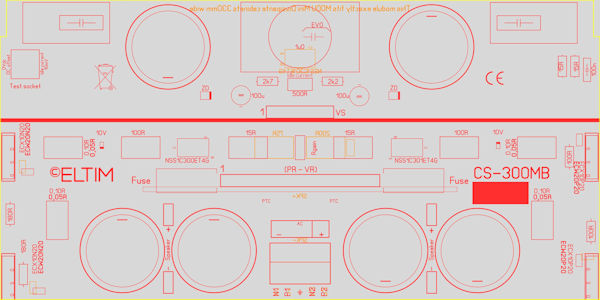

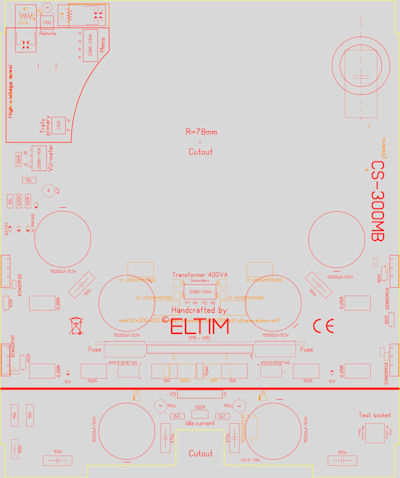

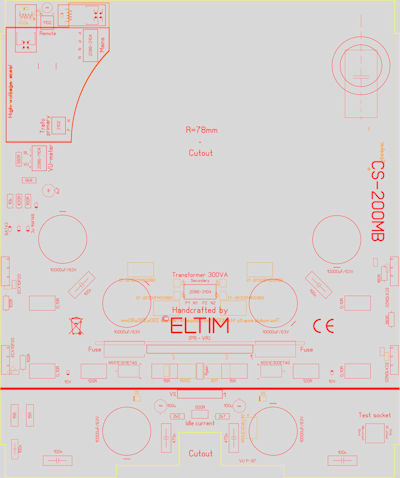

CS-300MB     L-mounted, 50-300Wrms, incl. power supply

  • Monoblock Current stage module with integrated Power Supply.
  • Just a dual sec. windings transformer required.
  • Runs with a dual pair of selected 8A or 16A EXICON Mosfets
  • Max. speaker current 16/32A
  • Works perfect in 50-300W Monoblock amplifier designs.
  • Exactly fits in MODU Mini Dissipante 330mm wide cabinets.
  • Reference class VS-50 input stage fits.
  • Mosfets L-mounted to Mini Dissipante aluminium heatsinks.
  • Test connector for aligning 0Vdc output and idle current.
  • Allows the use of a protection or voltage regulator module.
  • EU-made FR4+ PCB, 2x 35um copper
  • 248x124mm  (height depends on elco's used).



The modules below are microphonic free sandwich mounted to a heatsink.
We developed four completely new CS-module types; even more symmetrical
and less complicated PCB design, more copper used, more space for quality parts, etc.
We also left out the side connectors for add-on modules, which about nobody used.
They exactly fit in specific MODU brand enclosures.
The modules below are available in High-End and Reference quality, only parts quality differs.
CS-150/250 are also available in a cost effective Standard version
with more "down to earth" parts like "regular" TO247 Hexfets.

Launched Aug 2025 !

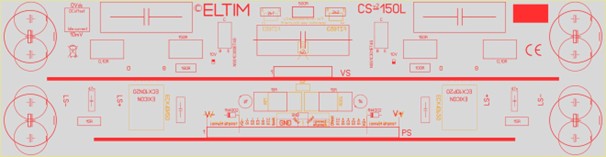

CS-150L module with one pair of most lineair functioning 8A EXICON Mosfets. Size 290x75mm.
In this model we also use highest quality DALE and BOURNS or CADDOCK resistors.
Fits in MODU (Mini) Dissipante 300x80mm and Slimline 350x80mm up.
Fits on Slimline (with reduced power) 80mm flanks without drilling required.
Test connector for aligning 0Vdc output and idle current.
Expected rated power: >150Wrms.   Successor of our respected CS-80 module.

We also made an economic (CS-150H) version with a pair of 12A IR Hexfets and "basic" resistors.


PRELIMINARY

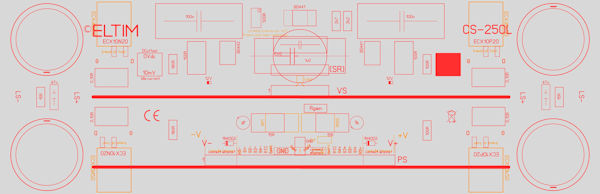

CS-250 module with two pairs of 8A EXICON Mosfets, total 16A. Size 290x94mm.
Economic (Standard) version available with 2 pairs of 12A Hexfets and 5% resistors.
Test connector for aligning 0Vdc output and idle current.
Fits in MODU (Mini) Dissipante 300x120mm and Slimline/Galaxy 350x120mm.
Fits in Slimline/Galaxy (with reduced power) 120mm without drilling the flanks.
You can use chassis plates on top and bottom at the same time.
Expected rated power: >250Wrms with optimal cooling.         Info Bulletin


PRELIMINARY
CS-450 module with two pairs of 16A EXICON Mosfets, total 32A. Size 330x94mm.
Test connector for aligning 0Vdc output and idle current.
Fits in MODU (Mini) Dissipante 400x120mm and Monoblock.
Fits in Slimline/Galaxy (with reduced power) 120mm without drilling the flanks.
You can use chassis plates on top and bottom at the same time.
Extra chassis mounted capacitors can be connected between the top capacitors.
Expected rated power: >450Wrms with optimal cooling.         Info Bulletin


PRELIMINARY

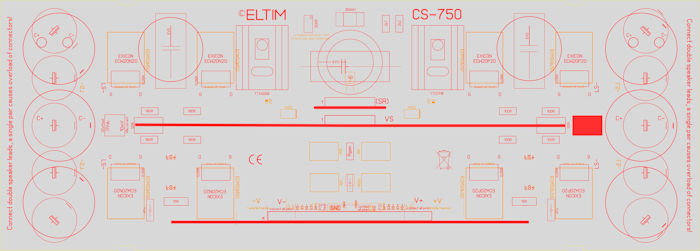

CS-750 module with four pairs of 16A EXICON Mosfets, total 64A. Size 390x140mm.
Test connector for aligning 0Vdc output and idle current.
Exactly fits in MODU Dissipante and Monoblock, sized 400x165mm.
You can use chassis plates on top and bottom at the same time.
Top mounted capacitors can be replaced by large chassis mounted versions.
Expected rated power: >750Wrms in Dissipante 400x165mm.
Perhaps in Dissipante 500x210mm >1000Wrms in Reference quality.....         Info Bulletin


Why use linear class A/B amps where about everybody else switches to class-D?
We build ultra linear analogue amplifiers in a class A/B setting.
Today, while using ultralinear devices as we do,  this "Class" thing has nothing to do any more
with quality but is purely an indication for the idle current setting of the Power Mosfets.
Our amplifiers already work more linear with very low idle current then various conventionally built class A amplifiers.
In other words: they sound better than old fashioned class-A, at the same time producing way less heat.
According to messages from customers, the former, way more "basic" CS-80 already participated in the top 10!

Class-D amplifiers usually "burn" less heat than linear amplifiers. True, but only while operating at high power!
Compared to our amplifiers and in daily household use, due to the low idle current setting and our
high-efficient (> 95%, where SMPS are 70%) linear power supplies, our amplifiers are about similar efficient as a total.
The ever returning issue about efficiency is a "hype" anyway because your amplifier is not outside, but in your
livingroom and its electrically generated heat is assisting your heating installation only a tiny bit!

Almost forgot: we make amplifiers to enjoy music, not to make plain power for a low price.
Also nice is that you can do that for at least coming 15 years as well. Good for you and our environment.
Compare and be surprised.......

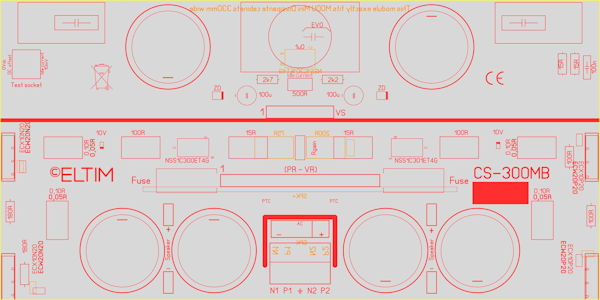

With our new test connector you can use and old USB square connector cable to measure!

We made a document of how to reverse the Power Supply connections.
This is a smart solution to avoid crossing of the supply leads in f.e. a bridged monoblock.
This will make the layout of a single power supply board between them very simple,
because the power lines are not crossing on a PCB then.
