ELTIM CS-35ps, Output/Current stage/power supply DIY kit

Aprox 100Wrms/8Ω, incl. on board power supply, excl. transformer

€ 55,95 *Prices include VAT € 46,24 excluding VAT €

Manufacturer: ELTIM
Article code: CS35pskit

0 star(s) in 0 review(s) Write a review

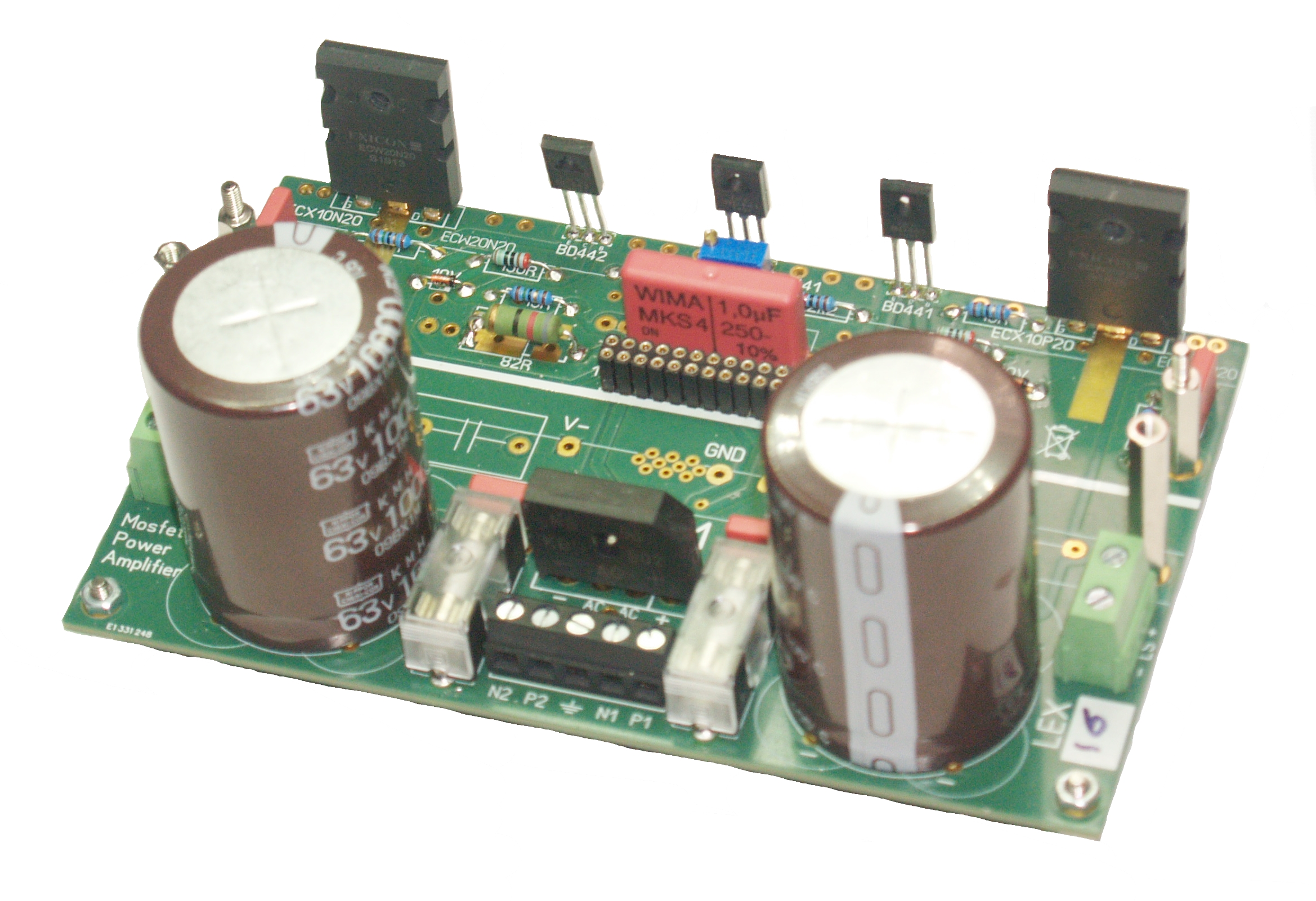

This CS-35ps power (current) stage + power supply module highlights:

Select the power Hexfets (GDS) or Mosfets (GSD) of your choice
L-mounted to heat sink, which is electrically separated from the PCB.
On board rectifier and power supply capacitor bank (not included!).
Capacitor bank with 2x Ø30/35mm (pitch 10mm) possible (order seperately!).
For low profile / cost effective solutions a capacitor bank of 2x4 Ø18mm, pitch 7,5mm caps possible.
All resistors MOX 1%. In feedback circuits als better SMD types fit. .
No output coil nor capacitor in the output line resulting in way better impulse and detail behaviour.
Gold plated beryllium copper header and 20A/4mm² screw connectors.
One or two CS-35+VS-5 modules fit on top, sharing the same power supply.
Dimensions: 149x90mm, height depending on Faets and capacitor types used.

We need to order it!

Power Fets:

Idle current capacitor type:

Feedback resistors type:

Power supply capacitor type:

Quantity

CS-35ps Current Stage / power supply DIY kit, with all the selected parts. Just make the selections of your choice above.

For a functioning amplifier you also need at least one of our VS-modules. These are the input part of the amplifier, CS-module is the output part.

CS-35ps module with GSD orientated Mosfets. We also have them for GDS oriented Hexfets.

You also need one of our VS-input stage modules. VS-5 exactly fits!
