TINYSINE AudioB I2S Bluetooth Digital Audio Receiver Module

Bluetooth 5.0 AudioB I2S master stereo receiver

TINYSINE AudioB I2S Bluetooth Digital Audio Receiver Module
€ 15,30 *Prices include VAT € 12,64 excluding VAT €
Manufacturer:  TINYSINE
Article code:  AUDIOBI2S
0 star(s) in 0 review(s) Write a review
  • Bluetooth 5.0
  • I2S digital output
  • Sampling Rate: 48KHz
  • Bit per Sample: 16 bit
  • Left Justified
  • Justified Data 1 bit delay
  • Apt-X supported
  • Low power consumption: 5mA@5V
  • HFP V1.6
  • HSP V1.2
  • A2DP V1.2
  • AVRCP v1.4
  • Support for smartphone application(APPs)
We need to order it!

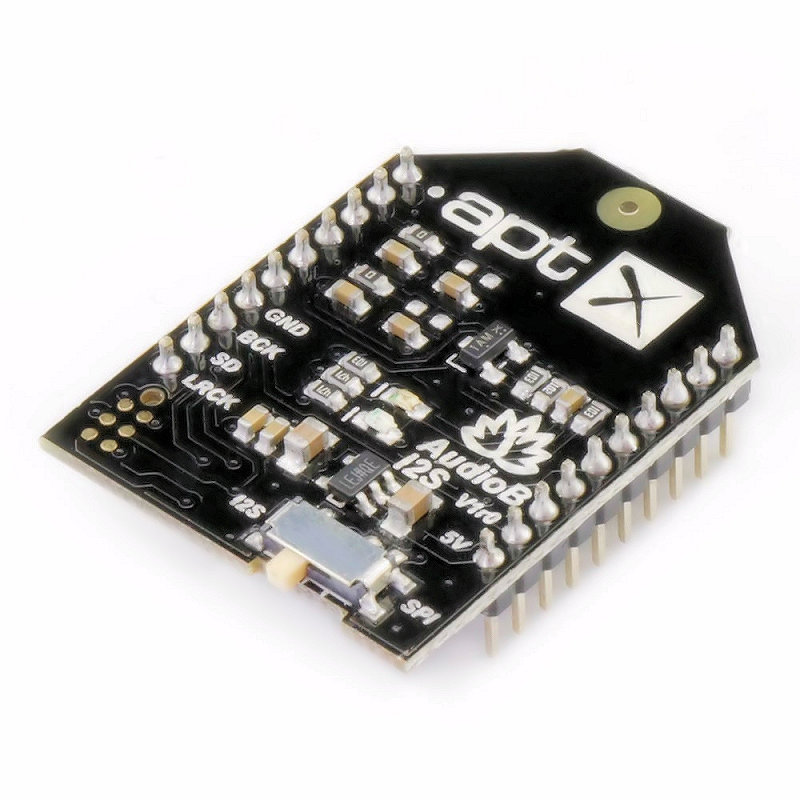

If you want to build a digital Bluetooth amplifier board, AudioB I2S Bluetooth audio receiver module is a good choice for your project. This is a Bluetooth 5.0 stereo receiver module, I2S digital output and music resampling frequency is 48KHz. This module supports Apt-X, and is based on Qualcomm QCC3008. Breakout pins are used to 2x10 2mm space male pins. You can integrate it to your project easily. If you want a demo board. Please buy our TSA7010 Digital Bluetooth Audio Receiver. It's a AudioB I2S module + DAC board.


Reviews

There are no reviews available in your current language
Write a review

Features and Specifications
