ELTIM CS-300MB, Monoblock Output/Current stage/power supply module

Aprox 200 or 300Wrms/4Ω, incl. on board power supply.

Momentarily not available

Manufacturer: ELTIM
Article code: CS300MB

0 star(s) in 0 review(s) Write a review

This CS-300MB Monoblock power (current) stage + power supply module highlights:

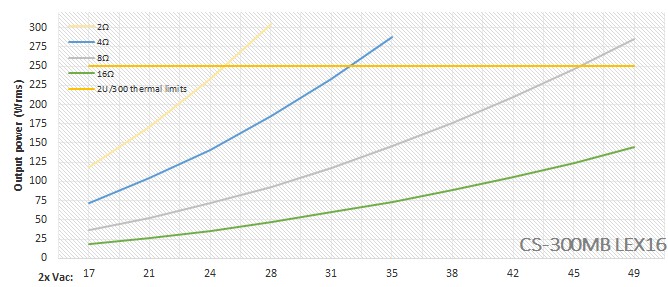

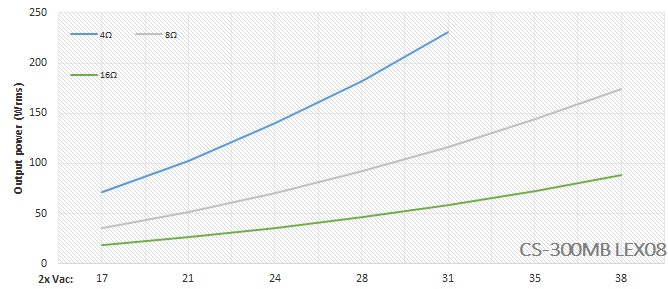

Select a 200Wrms or 300Wrms version, both in non-compromise design.

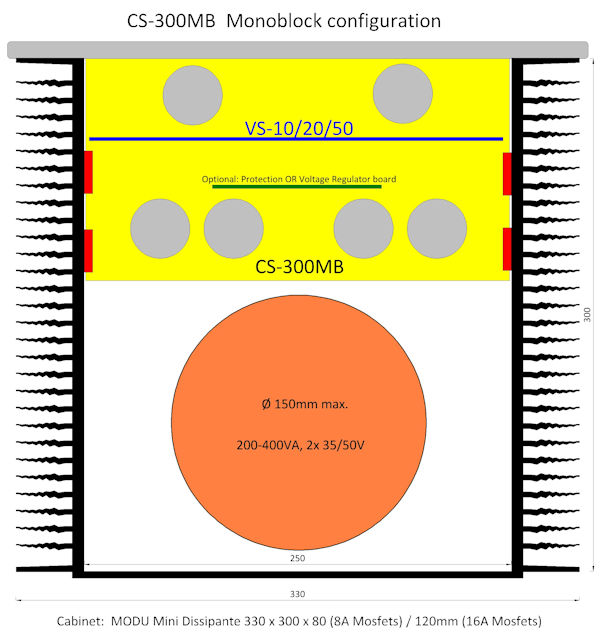

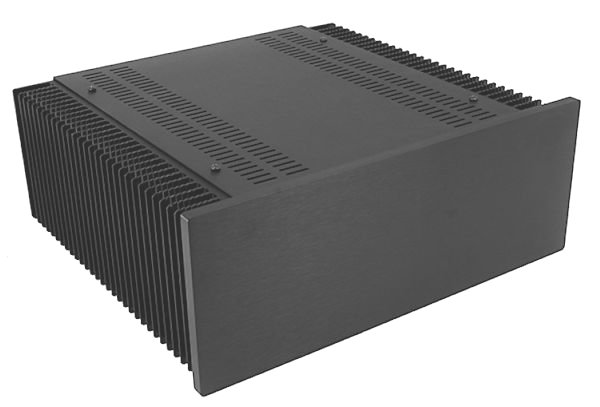

L-mounted to aluminium heatsinks of MODU Mini Dissipante cabinet 330mm wide.
Power supply and electrolytic capacitors close to the power transistors.
Extreme high quality CADDOCK induction free and DALE RN60D resistors.
High-End (Ø20x50mm) idle current capcitor.
Current driven high power feedback in the centre of PCB.
Gold plated 6,3mm faston blade speaker output terminals at left and right side.
No output coil nor capacitor in the output line resulting in way better impulse and detail behaviour.
Connector for a Protection circuit - or VS-voltage regulator board.
Separate Current Stage and Voltage Stage power rails.
Seperate ground tracks for input, output, VS and CS ground.
Shortest possible wired Mosfet driving train.
Gold plated beryllium copper, milled connectors, with multiple pin (3A) connections.
Reference class VS-50 input stage also fits.
Speaker signal for signalling/protection purposes at all connectors.
PCB position to mount an NTC/PTC at centre, connected to both horizontal connectors.
Idle current can be controlled and adjusted externally by a DC-signal coming from the centre connector.
Eurocircuits double sided PCB, 35um (standard is 18um).
Exactly fits in MODU Mini Dissipante 330mm wide versions.
Dimensions: 248x124x35/60mm, depending on capacitor types used.

Production on demand.
