ELTIM Pre 230, Compact preamplifier module

3 Line inputs, 1 internal Line out and 1 Line out.

€ 189,00 *Prices include VAT € 156,20 excluding VAT €

Manufacturer: ELTIM
Article code: PRE230

0 star(s) in 0 review(s) Write a review

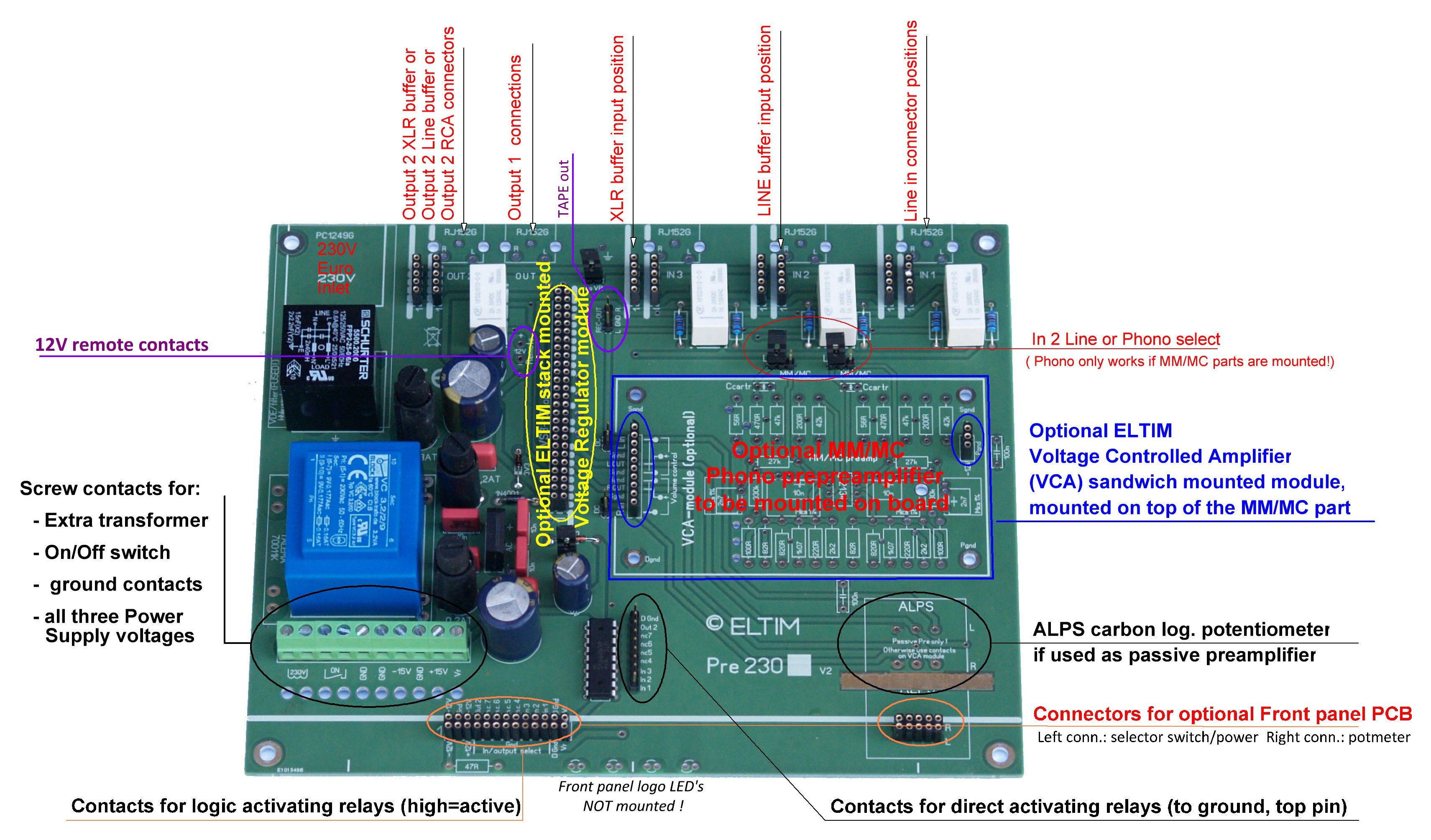

PRE-230 preamplifier module highlights:

- 3 Line inputs, relay switched

- Line in 2 can be modified to MM/MC phono input

- Location for ALPS carbon potentiometer

- 1 internal output (by solder pins)

- 1 external output (muted by relay)

- On board Power Supply 3,2VA + Netfilter

OPTIONS:

- MM/MC prepreamplifier parts locations on board

- ELTIM electronic (VCA) volume control module

- ELTIM symmetrical Voltage regulator module

- ELTIM buffered line inputs

- ELTIM buffered balanced inputs

- ELTIM buffered line output 2

- ELTIM buffered balanced output 2

- ELTIM Front Panel PCB support

- uP controlled functioning (volume and selections)

We need to order it!

Quantity

Pre-230

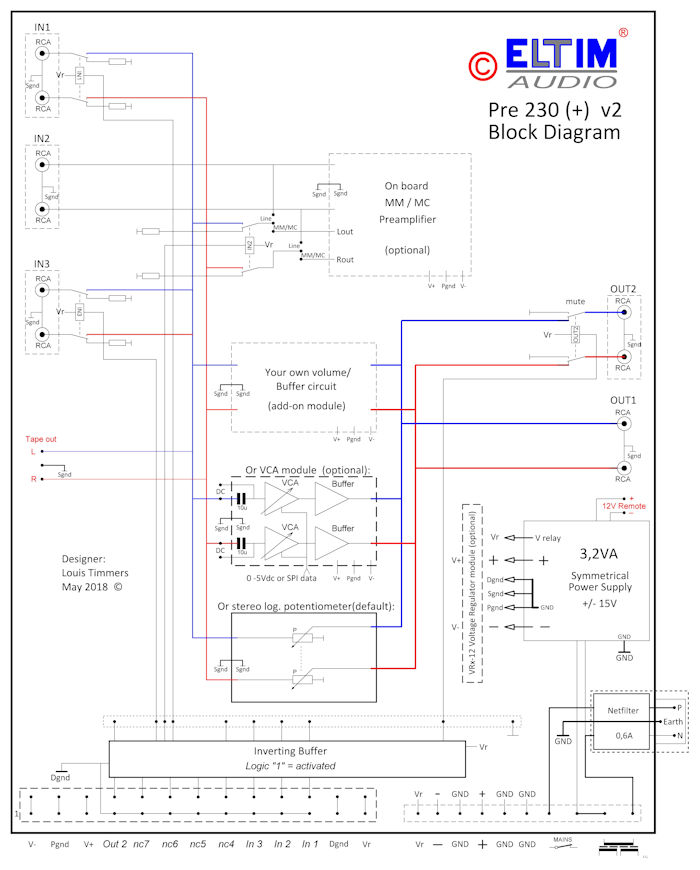

With this Pre-230 module we offer a 3 Inputs / 2 Output switching module with an on board Power Supply.

Standard it is a so called passive Preamplifier with electronic in/output switching function and a potentiometer volume control.

If you like, you can simply make it an active preamplifier by adding one of our VCA modules without modifications.

Instead of that, you could build your own electronics, with f.e. volume/balance/tone/etc. controls.

If you want to go one step higher, add our VR3-10 Voltage Regulator module for improved sound quality.

In this setting, input 2 is also a line input. You can upgrade it to a Phono input stage later.

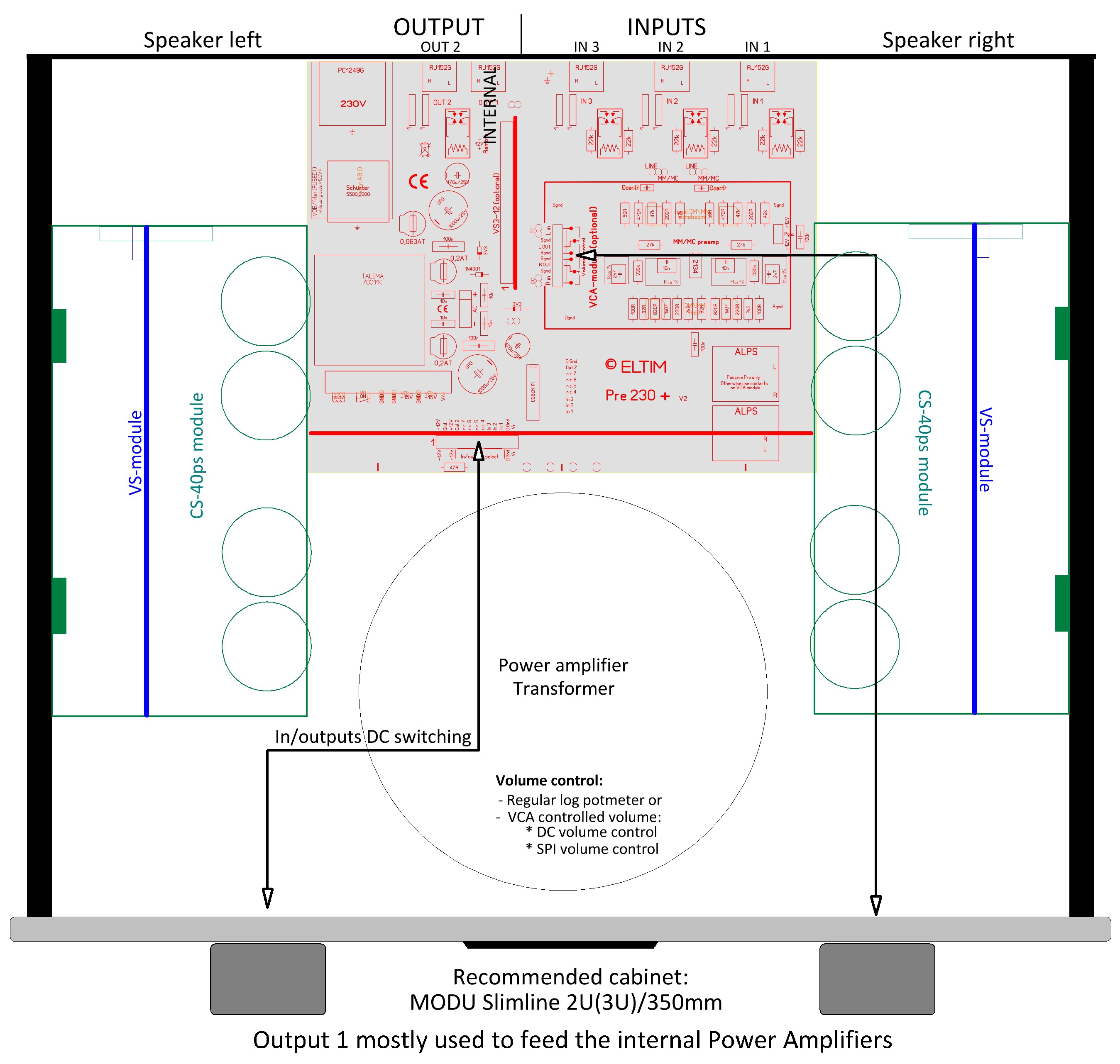

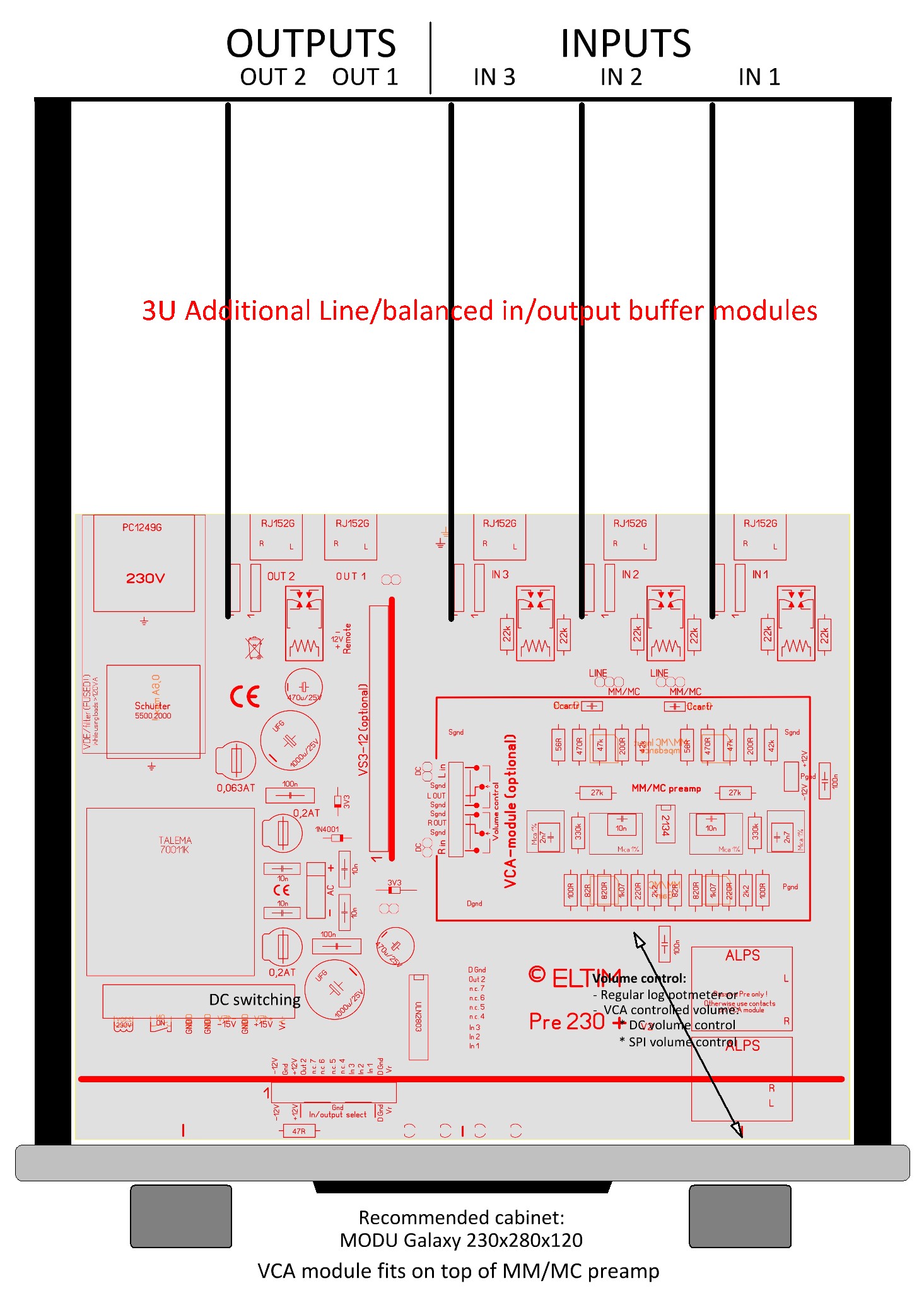

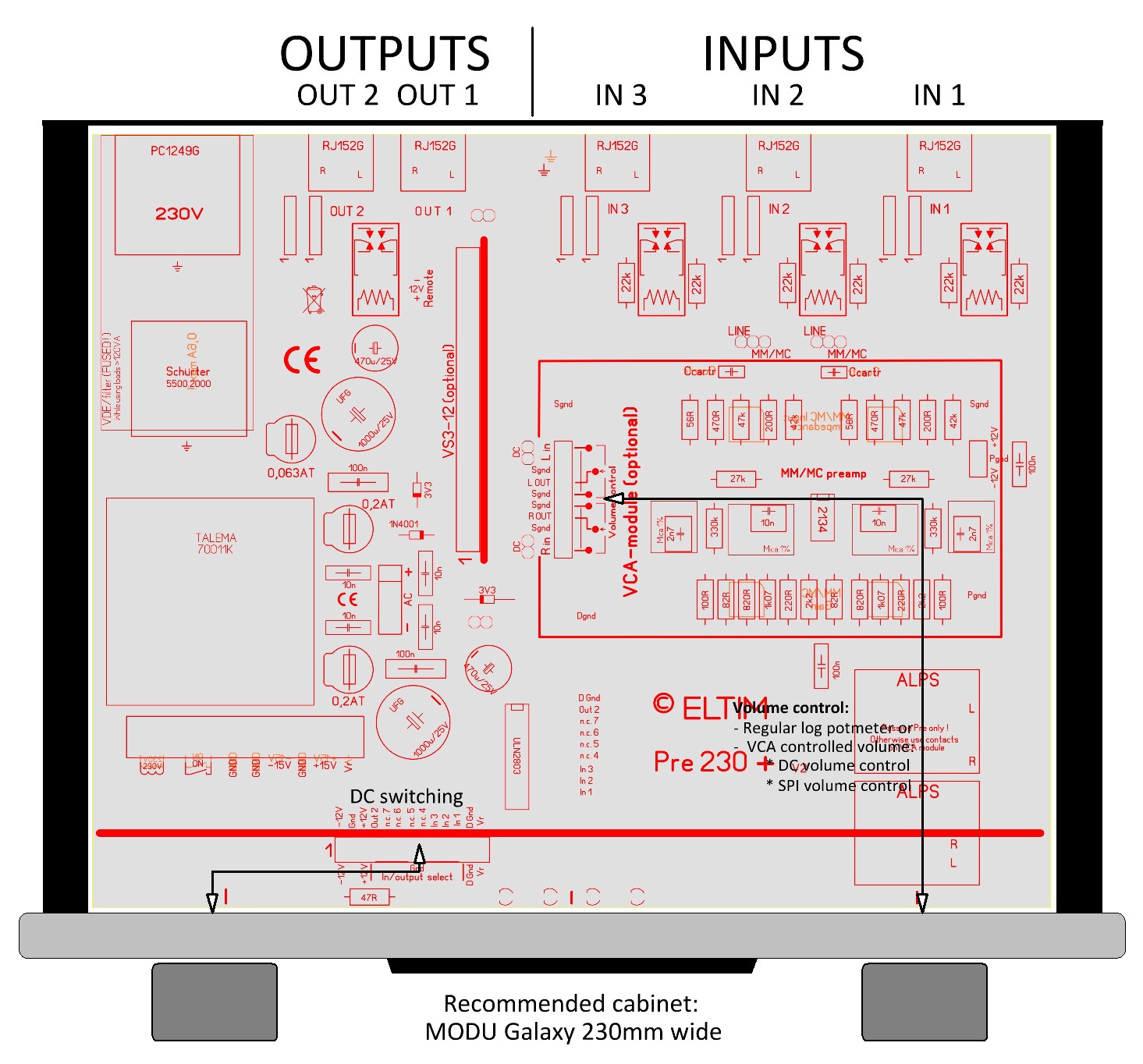

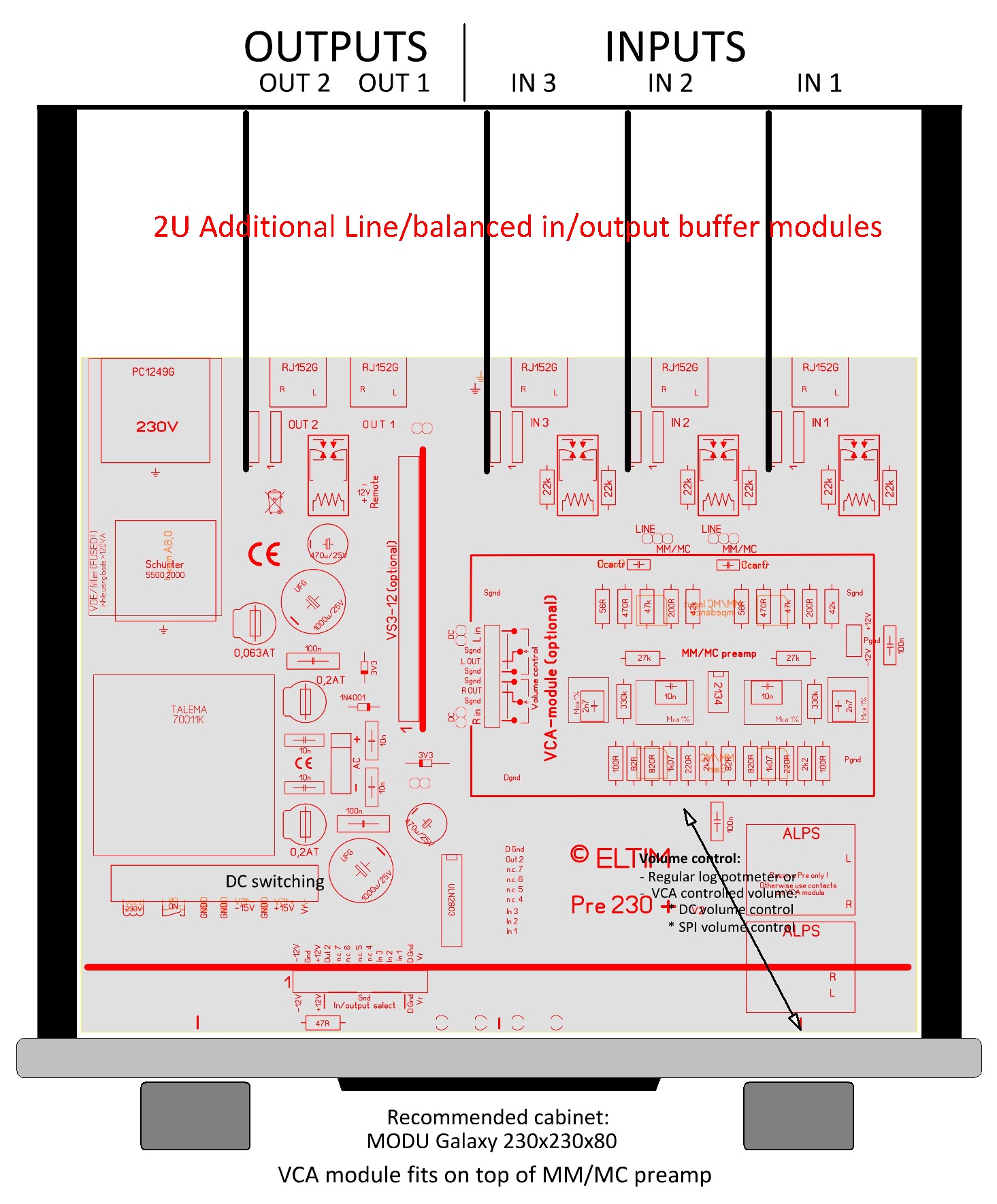

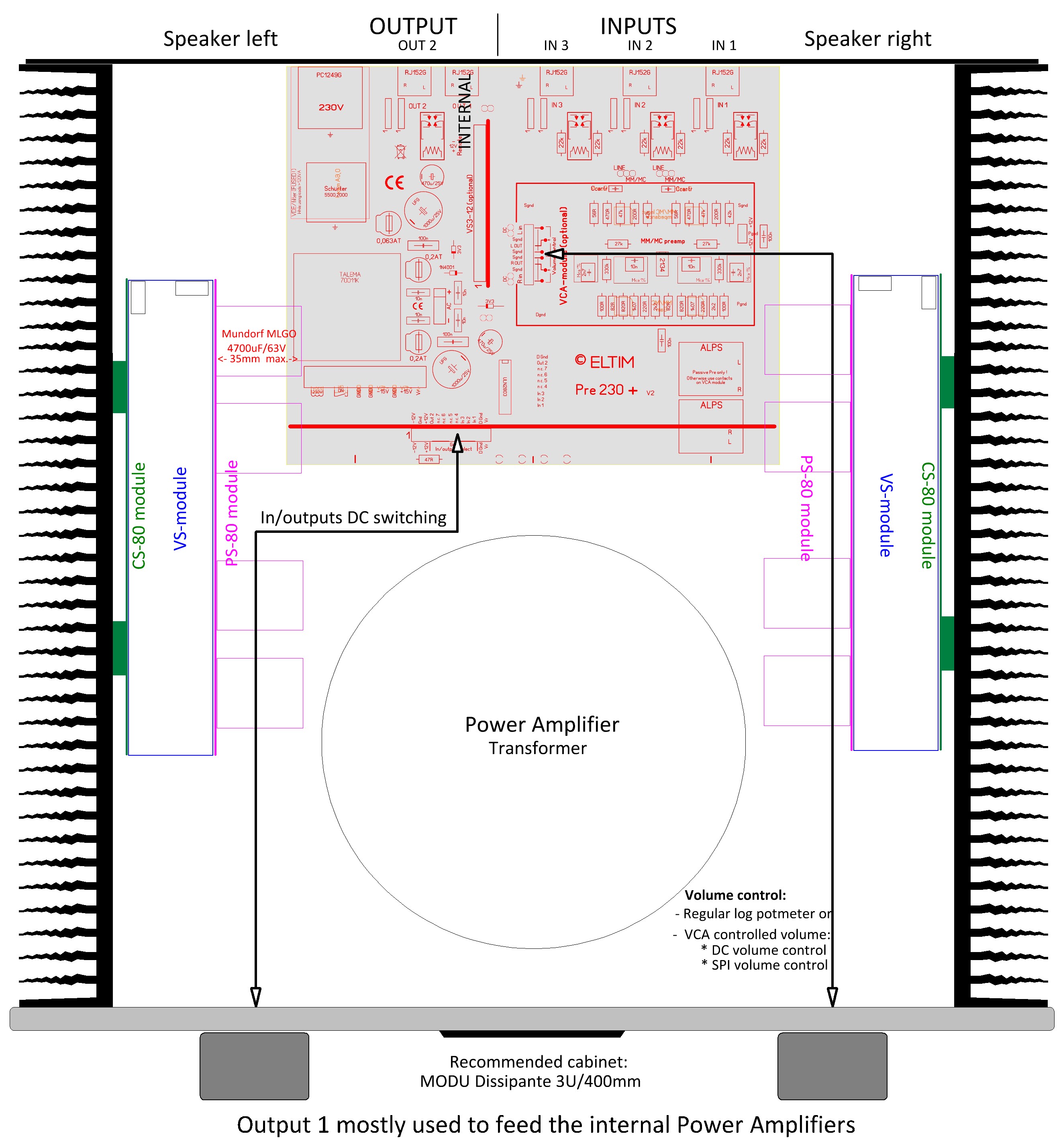

This Pre-230 module exactly fit in the nice and cost effective MODU Galaxy 230x170mm cabinets.

Of course, you also can mount them in any larger cabinet as well, f.e. in an integrated setup.
